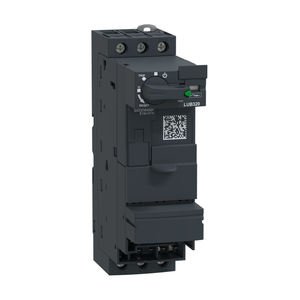

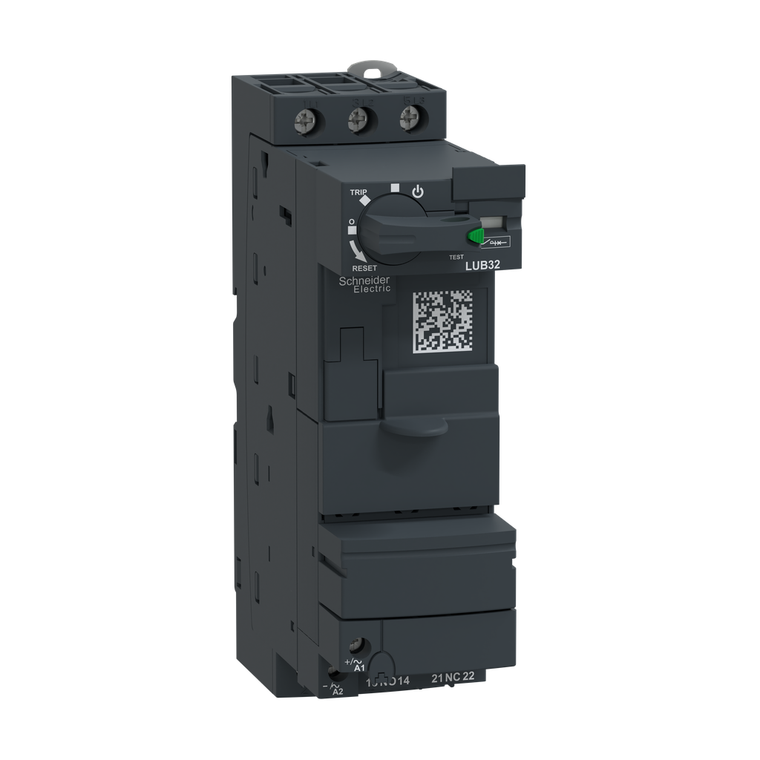

Schneider Electric LUB32 Screw Clamp Base 32A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LUB32 Screw Clamp Base 32A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LUB32

UPC:

3389110362787

MPN:

Condition:

New

Operating Altitude:

6561.68 ft (2000 m)

Resistance To Electrostatic Discharge:

8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2

Device Short Name:

LUB

Protective Treatment:

TH IEC 60068

Poles Description:

3P

Rohs Exemption Information:

Yes

Utilisation Category:

AC-43 || AC-44 || AC-41

Immunity To Radioelectric Fields:

10 V IEC 61000-4-6

Non-Dissipating Shock Wave:

1 kV serial mode 24...240 V AC IEC 60947-6-2 || 1 kV serial mode 48...220 V DC IEC 60947-6-2 || 2 kV common mode 24...240 V AC IEC 60947-6-2 || 2 kV common mode 48...220 V DC IEC 60947-6-2

Sustainable Offer Status:

Green Premium product

Standards:

EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Fire Resistance:

960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12

Immunity To Microbreaks:

3 ms control circuit

Operating Time:

35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit || 50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit || 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit || 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD c

Auxiliary Contacts Type:

linked contacts 1 NO + 1 NC) IEC 60947-4-1 || mirror contact 1 NC) IEC 60947-1

Tightening Torque:

control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips no 1 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm || power circuit 1.9-2.5 N.m pozidriv No 2 6 mm

Net Weight:

0.9 kg

Device Application:

motor control || motor protection

Immunity To Voltage Dips:

70 % / 500 ms IEC 61000-4-11

Ip Degree Of Protection:

IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)

Width:

45 mm

Shock Resistance:

10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27

Product Certifications:

CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine

[Ics] Rated Service Breaking Capacity:

50 kA 230 V || 50 kA 440 V || 10 kA 500 V || 4 kA 690 V

Heat Dissipation:

3-3 W control circuit with LUCA, LUCB, LUCC, LUCD || 1.8-1.8 W control circuit with LUCM

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz || 24 V DC || 48...72 V AC 50/60 Hz || 48...72 V DC || 110...240 V AC 50/60 Hz || 110...220 V DC

[Ui] Rated Insulation Voltage:

690 V IEC 60947-6-2 3) || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1

Connections - Terminals:

control circuit screw clamp terminals 1 0.34-1.5 mm² flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² rigid || control circuit screw cla

[Ith] Conventional Free Air Thermal Current:

32 A

Environmental Disclosure:

ENVPEP080203EN_V1

[Uimp] Rated Impulse Withstand Voltage:

6 kVIEC 60947-6-2

[Ue] Rated Operational Voltage:

690 V AC power circuit

Typical Current Consumption:

200 mA 24 V DC I maximum while closing with LUCM || 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 25 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, L

Product Name:

TeSys Ultra

Depth:

126 mm

Auxiliary Contact Composition:

1 NO + 1 NC

Suitability For Isolation:

yes

Compatibility Code:

LUB

Maximum Operating Rate:

3600 cyc/h

Network Frequency:

40...60 Hz

[Ie] Rated Operational Current:

28.5 A <= 440 V || 23 A 500 V || 21 A 690 V

Ambient Air Temperature For Storage:

-40-85 °C

Fixing Mode:

clipped DIN rail) || screw-fixed plate)

Mercury Free:

Yes

Pvc Free:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Ambient Air Temperature For Operation:

-25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD

Mechanical Durability:

15 Mcycles

Circularity Profile:

ENVEOLI0802003_V1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Fast Transients:

2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4

Vibration Resistance:

2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27

Resistance To Radiated Fields:

10 V/m 3 IEC 61000-4-3

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Range:

TeSys

Product Or Component Type:

non reversing power base

Safe Separation Of Circuit:

400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N

Height:

154 mm
