Schneider Electric LV426913 Long Terminal Shield 4P Iec/Ul Dis And V

Schneider Electric LV426913 Long Terminal Shield 4P Iec/Ul Dis And V

Schneider Electric
SKU:
LV426913
|
UPC:
3606485444277
Availability:
Contact us to confirm availability and lead times.
$217.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

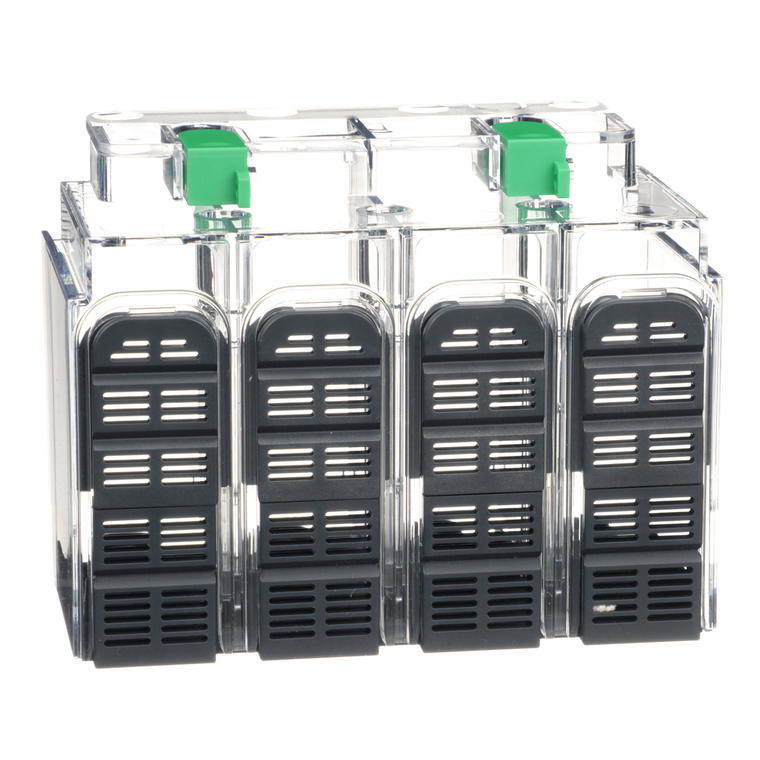

It is a long terminal shield for 4 poles Compact NSXm and PowerPact B devices. It is designed for protection against direct contact with power circuit The long terminal shield is used for connection with cables or insulated bares. It can be mounted upstream and downstream the circuit breaker. This part provides IP 40 degree of protection and IK 07 mechanical impact protection. It can be mounted after the product installation and can be removed and put in place even if there are auxiliary wires.
Additional Information
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Rohs Exemption Information:
Yes
Quantity Per Set:
set of 1
Connection Pitch:
35 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
long terminal shield
Accessory / Separate Part Type:
insulation accessories
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Location Of Connection:
upstream || downstream
Toxic Heavy Metal Free:
Yes
Poles Description:
4P
Range Compatibility:
ComPact ComPact NSXm || PowerPact PowerPact B
Reach Free Of Svhc:
Yes
