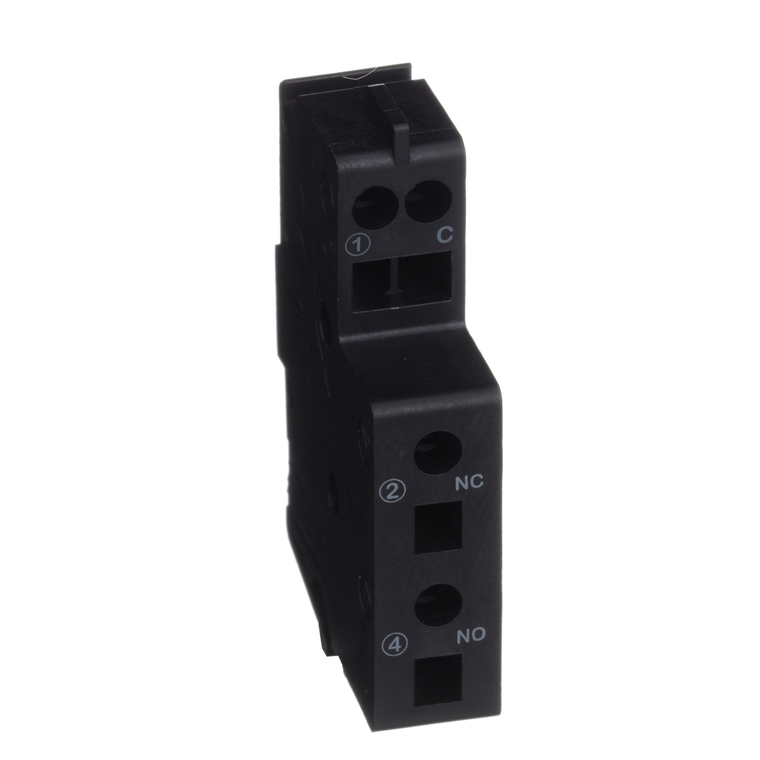

Schneider Electric LV426950 Auxiliary Contact Of Or Sd Nsxm & Pp-B

Schneider Electric LV426950 Auxiliary Contact Of Or Sd Nsxm & Pp-B

Schneider Electric
SKU:
LV426950
|
UPC:
3606485444215
Availability:
Contact us to confirm availability and lead times.
$257.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
It is a single standard auxiliary contact that provides two remote information of the circuit breaker status. It is used on Compact NSXm and PowerPact B devices. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. The SD contact (trip indication) indicates if the circuit breaker has tripped. There is one auxiliary contact model for OF and SD information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 2mA at 17 VDC. Utilization categories are AC12/AC13/DC12/DC13/DC14. Compact NSXm embeds 2 auxiliary contacts and their presence is visible on the front face through green flags. It complies with IEC 60947-5-1 standard.
Additional Information
Mercury Free:
Yes
Product Or Component Type:
auxiliary contact
Rohs Exemption Information:
Yes
Fault Type:
overload || short-circuit
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Auxiliary Contacts Type:
standard
Reach Free Of Svhc:
Yes
Auxiliary Connection Terminal:
spring
Device Application:
breaker status monitoring
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Local Signalling:
for open/close ON/OFF indication || for relay trip indicator trip indicator
Signal Contacts Composition:
1 NO/NC
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Short Name:
SD || OF
Range Compatibility:
PowerPact PowerPact B || ComPact ComPact NSXm
Mounting Mode:
clip-on
Minimum Load:
2 mA 17 V DC
[Ith] Conventional Free Air Thermal Current:
0.208333333333333
Eu Rohs Directive:
Compliant
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
[Ie] Rated Operational Current:
AC-12: 5 A at 24 V AC 50/60 Hz || AC-12: 5 A at 48 V AC 50/60 Hz || AC-12: 5 A at 110...127 V AC 50/60 Hz || AC-12: 5 A at 220/240 V AC 50/60 Hz || AC-12: 5 A at 380/440 V AC 50/60 Hz || AC-12: 5 A at 660/690 V AC 50/60 Hz || AC-15: 5 A at 24 V AC 50
Wire Stripping Length:
8 mm for front connection
