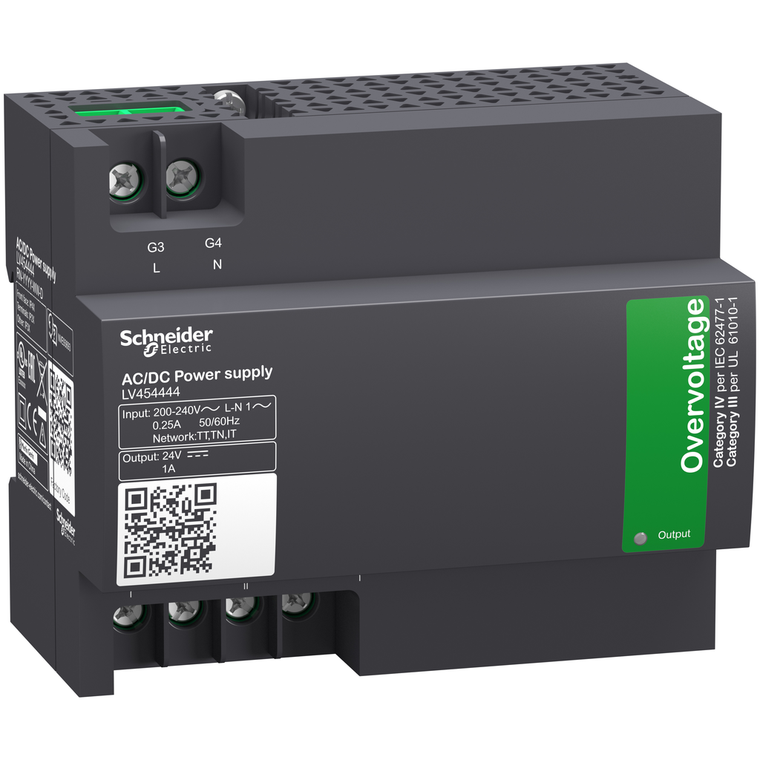

Schneider Electric LV454444 24Vdc Power Supply Ad Module 200/240 Vac

(No reviews yet) Write a Review

Write a Review

Schneider Electric LV454444 24Vdc Power Supply Ad Module 200/240 Vac

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LV454444

UPC:

3606481190963

MPN:

Condition:

New

Accessory / Separate Part Type:

control units accessories || trip unit accessories

Device Application:

power supply

Product Or Component Type:

external power supply module

Depth:

67.5 mm

Toxic Heavy Metal Free:

Yes

Mounting Support:

35 x 7.5 mm symmetrical DIN rail

Ambient Air Temperature For Storage:

-50-85 °C

Efficiency:

0.85

Operating Altitude:

0...6561.68 ft (0...2000 m)

Circularity Profile:

ENVEOLI2308025EN

Operating Position:

horizontal

Range Compatibility:

Masterpact MasterPact MTZ || Masterpact MasterPact NT || Masterpact MasterPact NW || ComPact ComPact NSX || ComPact ComPact NSX DC || ComPact ComPact NS630b...1600 || ComPact ComPact NS1600b...3200 || PowerPact PowerPact H || PowerPact PowerPact J ||

Environmental Characteristic:

EMC EN/IEC 61000-6-2 || EMC EN/IEC 61000-6-3 || safety IEC 62477-1 || safety SELV

Marking:

EAC || CE || UL

Compatibility Code:

CB_EXTERNAL_POWERSUPPLY

Power Dissipation In W:

4.2 W

Ip Degree Of Protection:

IP4X EN/IEC 60529 front face) || IP2X EN/IEC 60529 connection terminals) || IP3x EN/IEC 60529 housing)

Sustainable Offer Status:

Green Premium product

Inrush Current:

20 A 2 ms

Reach Free Of Svhc:

Yes

Status Led:

1 LED (Green) output voltage

Input Voltage Limits:

170...264 V AC 47.5-63 Hz

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP2308025EN

Mercury Free:

Yes

Eu Rohs Directive:

Compliant

Trip Unit Name:

MicroLogic

Width:

108 mm

Overvoltage Category:

IV IEC 62477-1 || III UL 61010-1

Output Voltage:

24 V DC +/-5 %

Output Protection Type:

against overload manual reset || against overvoltage 30...32 V, manual reset || against short-circuits manual reset || thermal automatic reset

Power Supply Output Current:

0.0416666666666667

Warranty:

18 months

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Permissible Temporary Current Boost:

1.5 A 200 ms)

Connections - Terminals:

screw type terminals 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 || screw type terminals 1 x 0.2...1 x 4 mm² AWG 24...AWG 12

[Us] Rated Supply Voltage:

200...240 V AC 50/60 Hz +10 % -15 %

Power Supply Type:

regulated switch mode

Relative Humidity:

0-95 % during operation || 0-95 % in storage

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Holding Time:

>= 20 ms 200...240 V AC

Height:

90 mm

Name Of Test:

electrostatic discharges EN/IEC 61000-4-2 || induced electromagnetic field EN/IEC 61000-4-6 || magnetic field EN 61000-4-8 || primary outage IEC 61000-4-11 || radiated electromagnetic field EN/IEC 61000-4-3 || rapid transient IEC 61000-4-4 || surge E

Kw Rating:

24 W

Dielectric Strength:

3000 V between input and ground || 3000 V between input and output || 1500 V between output and ground

Ambient Air Temperature For Operation:

-25-70 °C

Standards:

UL 61010-1 || IEC 62477-1
