Schneider Electric LXM28AU04M3X Lexium28 Can Io Drive 1/3Ph 230V 400W
Schneider Electric
$741.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

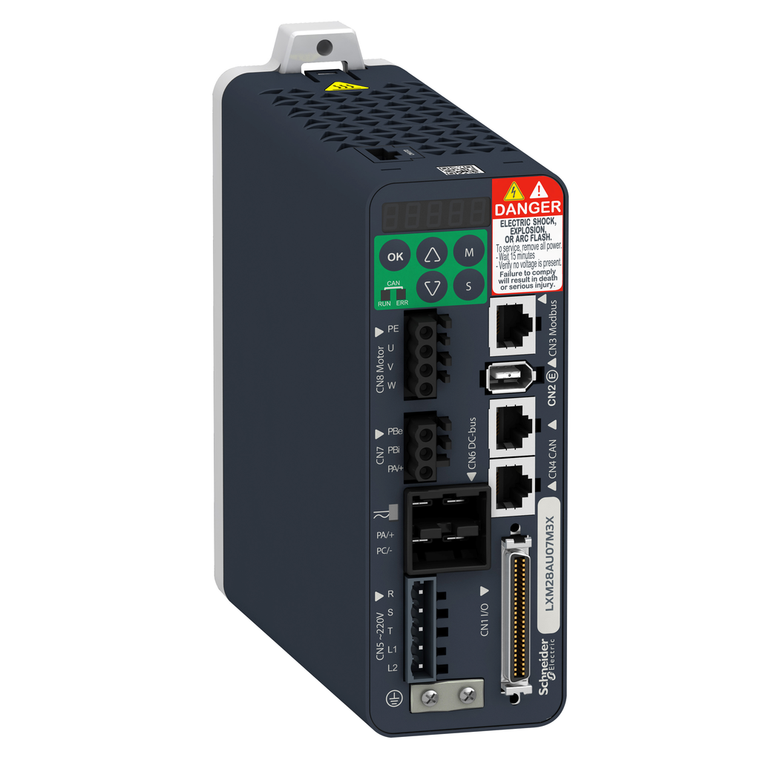

Schneider Electric LXM28AU04M3X Lexium28 Can Io Drive 1/3Ph 230V 400W
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 7.8A at 220V, a power of 400W/0.53HP and a continuous power of 400W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (60mm, 2 motor stacks) at 400W, servo motor BCH2 (80mm, 1 motor stacks) at 400W and servo motor BCH2 (130mm, 1 motor stacks) at 300W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
- Electromagnetic Compatibility:
- conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
- Method Of Access:
- slave
- Net Weight:
- 1 kg
- Standards:
- IEC 61800-5-1
- Discrete Input Voltage:
- 24 V DC logic
- Protection Type:
- against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
- Depth:
- 146 mm
- Network Frequency:
- 47.5...63 Hz
- Ambient Air Temperature For Storage:
- -25-65 °C
- Safety Function:
- STO (safe torque off), Integrated
- Output Voltage:
- <= power supply voltage
- China Rohs Regulation:
- X
- Continuous Output Current:
- 2.6 A 16 kHz
- Circularity Profile:
- ENVEOLI1409001EN
- Communication Interface:
- CANopen, Integrated || CANmotion, Integrated
- Environmental Disclosure:
- ENVPEP1409001EN
- Operating Position:
- vertical
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Width:
- 55 mm
- Line Current:
- 3.8 A 211.6 % 220 V, single phase || 3.8 A 183.7 % 220 V, three phase
- Output Current 3S Peak 3:
- 7.8 A 220 V
- Discrete Output Logic:
- positive or negative CN1)
- Output Current 3S Peak:
- 7.8 A 220 V
- Emc Filter:
- without EMC filter
- Control Signal Type:
- servo motor encoder feedback CN2
- Sustainable Offer Status:
- Green Premium product
- Discrete Input Number:
- 8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
- Switching Frequency:
- 16 kHz
- Product Certifications:
- cULus || CSA || CE
- Format Of The Drive:
- compact housing
- Electrical Isolation:
- between power and control
- Product Compatibility:
- servo motor BCH2 60 mm, 2 400 W || servo motor BCH2 80 mm, 1 400 W || servo motor BCH2 130 mm, 1 300 W
- Pvc Free:
- Yes
- Device Short Name:
- LXM28A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Maximum Leakage Current:
- 1.3 mA
- Signalling Function:
- servo status and fault codes five 7-segment display units
- Transmission Rate:
- 250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
- [Us] Rated Supply Voltage:
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Connection:
- spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Supply Frequency:
- 50/60 Hz - 5...5 %
- Connector Type:
- RJ45 CN4)CANopen, CANmotion
- Status Led:
- 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
- Range Of Product:
- Lexium 28
- Type Of Cable:
- shielded motor cable 0-55 °C) copper
- Absolute Accuracy Error:
- 0.001
- Ip Degree Of Protection:
- IP20
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Discrete Input Logic:
- positive or negative CN1)
- Shock Resistance:
- 10 gn, type I IEC 60721-3-3
- Output Current 3S Peak 2:
- 7.8 A 220 V
- Relative Humidity:
- 5-95 % without condensation
- Phase:
- three phase || single phase
- Continuous Power:
- 400 W 220 V
- Discrete Output Number:
- 5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
- Supply Voltage Limits:
- 200-255 V three phase || 170-255 V single phase
- Overvoltage Category:
- III
- Safety Level:
- SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
- Ambient Air Temperature For Operation:
- 0-55 °C
- Nominal Power:
- 0.4 kW 220 V 16 kHz
- Type Of Cooling:
- natural convection
- Mercury Free:
- Yes
- Vibration Resistance:
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Physical Interface:
- RS485 Modbus Serial line slave
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
- Analogue Input Number:
- 2
- Marking:
- CSA || CE || cULus
- Discrete Output Voltage:
- 12...24 V DC
- Product Or Component Type:
- motion servo drive
- Analogue Input Type:
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
- Number Of Addresses:
- 1-127 CANopen, CANmotion
- Height:
- 150 mm
- Catalog:
- View
- Datasheet:
- View
