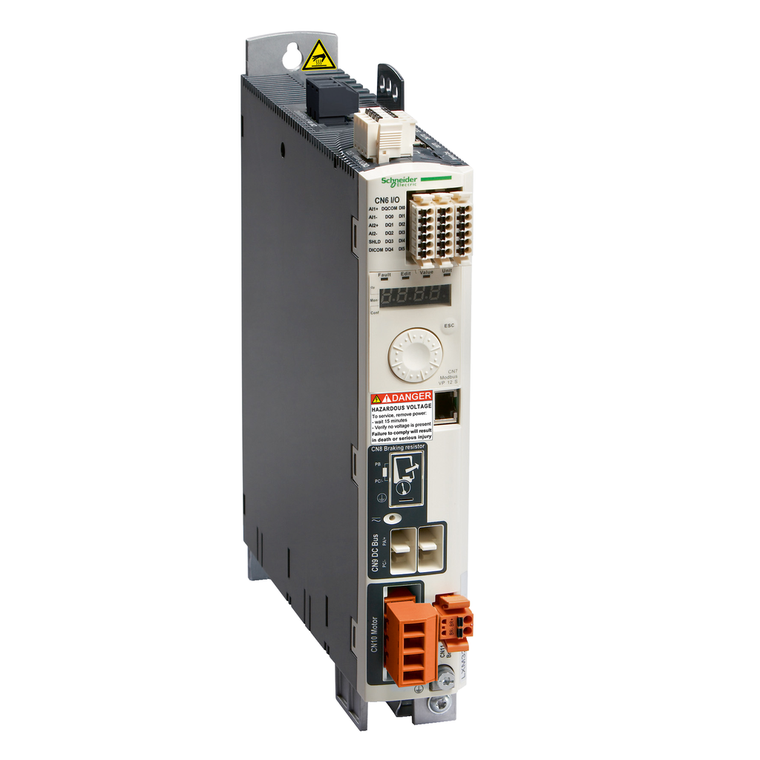

Schneider Electric LXM32CD18M2 Lxm32C Analogue Pulse Train 18A Rms Peak

(No reviews yet) Write a Review

Write a Review

Schneider Electric LXM32CD18M2 Lxm32C Analogue Pulse Train 18A Rms Peak

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LXM32CD18M2

UPC:

3606480076664

MPN:

Condition:

New

Discrete Input Type:

logic DI || safety compliment of STO_A, compliment of STO_B

Maximum Leakage Current:

30 mA

Discrete Input Logic:

positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1

Contact Bounce Time:

<= 1 ms compliment of STO_A, compliment of STO_B || 0.25 µs...1.5 ms DI

Discrete Output Voltage:

<= 30 V DC

Sustainable Offer Status:

Green Premium product

Sampling Duration:

ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analog || DI 0.25 ms discrete

Discrete Output Logic:

positive or negative DO)EN/IEC 61131-2

Absolute Accuracy Error:

< +/- 0.5 %

Format Of The Drive:

book

Supply Frequency:

50/60 Hz - 5...5 %

Vibration Resistance:

1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6

Switching Frequency:

8 kHz

Analogue Input Type:

ANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits

Type Of Cooling:

integrated fan

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Input Voltage:

24 V DC logic || 24 V DC safety

Transmission Rate:

9600, 19200, 38400 bps 40-40 m Modbus

Pvc Free:

Yes

Analogue Input Number:

2

Electromagnetic Compatibility:

conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electr

Protection Type:

against reverse polarity inputs signal || against short-circuits outputs signal

Safety Function:

STO (safe torque off), Integrated

Product Compatibility:

servo motor BMH 70 mm, 1 || servo motor BMH 70 mm, 2 || servo motor BMH 100 mm, 1 || servo motor BSH 70 mm, 1 || servo motor BSH 70 mm, 2 || servo motor BMH 70 mm, 3 || servo motor BSH 55 mm, 3 || servo motor BSH 70 mm, 3 || servo motor BSH 100 mm, 1

Output Voltage:

<= power supply voltage

Warranty:

18 months

Circularity Profile:

ENVEOLI110605EN

Shock Resistance:

15 gn 11 ms EN/IEC 60028-2-27

Relative Humidity:

Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3

Connector Type:

RJ45 (labelled CN7) Modbus

Number Of Addresses:

1-247 Modbus

Product Or Component Type:

motion servo drive

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions

Electrical Isolation:

between power and control

Continuous Output Current:

6 A 8 kHz

Status Led:

1 LED (Red) servo drive voltage

Network Frequency:

47.5...63 Hz

Ambient Air Temperature For Storage:

-25-70 °C

[Us] Rated Supply Voltage:

100...120 V - 15...10 % || 200...240 V - 15...10 %

Communication Interface:

Modbus, Integrated

Height:

270 mm

Safety Level:

SIL 3 EN/IEC 61508 || PL = e ISO 13849-1

Phase:

single phase

Depth:

237 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Power:

800 W 115 V || 1600 W 230 V

Standards:

EN/IEC 61800-5-1 || EN/IEC 61800-3

Electrical Connection:

terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)

China Rohs Regulation:

X

Physical Interface:

2-wire RS485 multidrop Modbus

Response Time:

<= 5 ms compliment of STO_A, compliment of STO_B

Line Current:

9.9 A 74 % 115 V, with external line choke 2 mH || 10.6 A 93 % 230 V, with external line choke 2 mH || 8.5 A 147 % 115 V, without line choke || 8.4 A 148 % 230 V, without line choke

Environmental Characteristic:

classes 3C1 IEC 60721-3-3

Signalling Function:

display of faults 7 segments

Discrete Output Number:

5

Overvoltage Category:

III

Width:

48 mm

Ip Degree Of Protection:

IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1

Product Certifications:

UL || TÜV || CSA

Tightening Torque:

CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP110705EN

Supply Voltage Limits:

85-132 V || 170-264 V

Output Current 3S Peak:

10 A 115 V 5 s || 18 A 230 V 5 s

Net Weight:

1.8 kg

Braking Current:

50 mA

Nominal Power:

0.5 kW 115 V 8 kHz || 1 kW 230 V 8 kHz

Response Time On Output:

250 µs DO)discrete

Type Of Cable:

single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR

Operating Position:

vertical +/- 10 degree

Discrete Output Type:

logic DO)24 V DC

Discrete Input Number:

2 safety || 6 logic

Pollution Degree:

2 EN/IEC 61800-5-1

Ambient Air Temperature For Operation:

0-50 °C UL

Mercury Free:

Yes

Marking:

CE

Range Of Product:

Lexium 32

Control Signal Type:

servo motor encoder feedback || pulse train output (PTO) RS422 <500 kHz <100 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m || pulse

Linearity Error:

< +/- 0.1 %

Emc Filter:

integrated

Rohs Exemption Information:

Yes

Device Short Name:

LXM32C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
