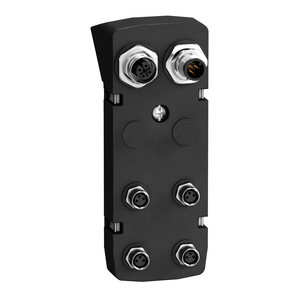

Schneider Electric LXM32IECT Lexium 32 I Ethercat Module

Schneider Electric LXM32IECT Lexium 32 I Ethercat Module

Schneider Electric
SKU:
LXM32IECT
|
UPC:
3606480620164
Availability:
Contact us to confirm availability and lead times.
$862.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with RJ45 connectors for Modbus, M12 for EtherCAT. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.637kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Additional Information
Electromagnetic Compatibility:
conducted EMC EN 55011 class A group 1 || conducted EMC EN 55011 class A group 2 || conducted EMC EN/IEC 61800-3 environment 2 category C3 || conducted EMC IEC/EN 61800-3 category C2 || EMC immunity IEC/EN 61800-3 environments 1 and 2 || EMC immunity
Ambient Air Temperature For Operation:
0-50 °C UL
Response Time:
<= 5 ms compliment of STO_A, compliment of STO_B
Status Led:
1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN
Product Certifications:
TÜV || CSA || UL
Discrete Input Type:
safety compliment of STO_A, compliment of STO_B || logic DI
Discrete Output Type:
logic DO)24 V DC
Physical Interface:
2-wire RS485 multidrop Modbus
Discrete Output Voltage:
<= 30 V DC
Sampling Duration:
DI 0.25 ms discrete
Transmission Rate:
9600, 19200, 38400 bps 0-40 m Modbus
Control Signal Type:
servo motor encoder feedback
Safety Function:
safe torque off safety function, Integrated
Operating Position:
vertical +/- 10 degree
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
Discrete Output Number:
2
Ip Degree Of Protection:
IP65
Net Weight:
0.637 kg
Vibration Resistance:
1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Protection Type:
against reverse polarity inputs signal || against short-circuits outputs signal
Relative Humidity:
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Marking:
CE
Safety Level:
SIL 3 IEC 61508 || PL = e ISO 13849-1
Number Of Addresses:
1-127 CANopen, CANmotion || 1-247 Modbus
Discrete Input Number:
2 safety || 4 logic
Format Of The Drive:
board
Product Or Component Type:
control unit
Discrete Input Logic:
positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1 || positive DI)> 19 V < 9 V IEC 61131-2 Type 1 || positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1
Discrete Input Voltage:
24 V DC capture || 24 V DC logic || 24 V DC safety
Range Of Product:
Lexium 32i
Pollution Degree:
2 IEC 61800-5-1
Warranty:
18 months
Contact Bounce Time:
<= 1 ms compliment of STO_A, compliment of STO_B || 0.25 µs...1.5 ms DI
Discrete Output Logic:
positive or negative DO)IEC 61131-2
Standards:
IEC 61800-3 || IEC 61800-5-1
Connector Type:
RJ45 Modbus || M12 EtherCAT
Method Of Access:
slave
Braking Current:
50 mA
Environmental Characteristic:
classes 3C1 IEC 60721-3-3
Ambient Air Temperature For Storage:
-25-70 °C
Type Of Cooling:
natural convection
Response Time On Output:
250 µs DO)discrete
Communication Interface:
EtherCAT, Integrated
Device Short Name:
LXM32i
Shock Resistance:
15 gn 11 ms IEC 60028-2-27
