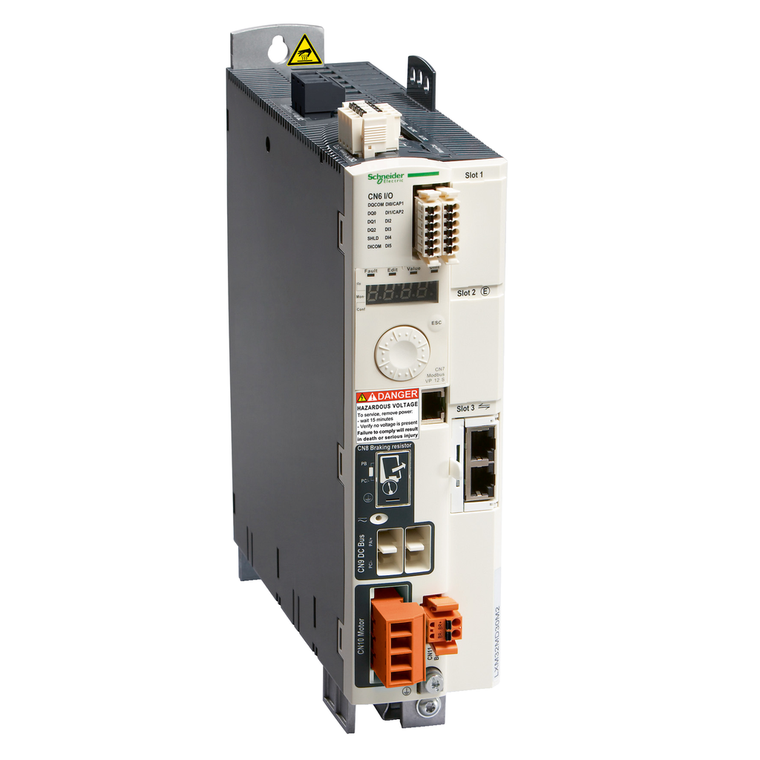

Schneider Electric LXM32SD30N4 Lxm32S Servo Drive Sercos 208#480V Tri 1

Schneider Electric LXM32SD30N4 Lxm32S Servo Drive Sercos 208#480V Tri 1

Schneider Electric
SKU:
LXM32SD30N4
|
UPC:
3606480694783
$2,193.36
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 2600W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus and SERCOS III integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.7kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Additional Information
Relative Humidity:
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Discrete Output Number:
3
Continuous Power:
2800 W 208 V || 5600 W 400 V || 5600 W 480 V
Output Current 3S Peak:
30 A 208 V 5 s || 30 A 480 V 5 s
Ambient Air Temperature For Operation:
0-50 °C UL
Device Short Name:
LXM32S
Format Of The Drive:
book
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Discrete Output Type:
logic DO)24 V DC
Discrete Output Logic:
positive or negative DO)EN/IEC 61131-2
Vibration Resistance:
1 gn 13-150 Hz)EN/IEC 60068-2-6
Supply Frequency:
50/60 Hz - 5...5 %
Electromagnetic Compatibility:
conducted EMC EN 55011 class A group 1
Overvoltage Category:
III
Connector Type:
RJ45 (labelled CN7) Modbus
Environmental Characteristic:
classes 3C1 IEC 60721-3-3
Number Of Addresses:
1-247 Modbus
Marking:
CE
Type Of Cooling:
integrated fan
Circularity Profile:
ENVEOLI110605EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Communication Interface:
Modbus, Integrated || SERCOS III, Integrated
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP110705EN
Height:
270 mm
Type Of Cable:
single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Electrical Isolation:
between power and control
Response Time:
<= 5 ms compliment of STO_A, compliment of STO_B
Safety Level:
SIL 3 EN/IEC 61508
Electrical Connection:
terminal 3 mm², AWG 12 CN8)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Voltage:
24 V DC capture
Nominal Power:
2 kW 208 V 8 kHz || 3 kW 400 V 8 kHz || 3 kW 480 V 8 kHz
Rohs Exemption Information:
Yes
Pvc Free:
Yes
Switching Frequency:
8 kHz
Contact Bounce Time:
<= 1 ms compliment of STO_A, compliment of STO_B
Output Voltage:
<= power supply voltage
Tightening Torque:
CN8 0.5-0.5 N.m
Emc Filter:
integrated
Range Of Product:
Lexium 32
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility:
servo motor BMH 100 mm, 3
Signalling Function:
display of faults 7 segments
Continuous Output Current:
10 A 8 kHz
Braking Current:
50 mA
Physical Interface:
2-wire RS485 multidrop Modbus
Line Current:
9.2 A 59 % 208 V, with external line choke 1 mH || 11.1 A 77 % 400 V, with external line choke 1 mH || 9.6 A 85 % 480 V, with external line choke 1 mH || 9.8 A 128 % 208 V, without line choke || 8.3 A 148 % 400 V, without line choke || 7 A 152 % 480
Operating Position:
vertical +/- 10 degree
Phase:
three phase
Discrete Input Number:
2 capture
China Rohs Regulation:
X
Width:
68 mm
Sampling Duration:
0.25 ms
Discrete Output Voltage:
<= 30 V DC
Mercury Free:
Yes
Product Certifications:
CSA
Standards:
EN/IEC 61800-3
Net Weight:
2.7 kg
Safety Function:
STO (safe torque off), Integrated
Depth:
237 mm
Discrete Input Type:
capture CAP
Maximum Leakage Current:
30 mA
Ip Degree Of Protection:
IP20 EN/IEC 60529
Product Or Component Type:
motion servo drive
Shock Resistance:
15 gn 11 ms EN/IEC 60028-2-27
Transmission Rate:
9600, 19200, 38400 bps 40-40 m Modbus
Ambient Air Temperature For Storage:
-25-70 °C
Pollution Degree:
2 EN/IEC 61800-5-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Response Time On Output:
250 µs DO)discrete
Warranty:
18 months
Supply Voltage Limits:
170-264 V || 323-528 V
[Us] Rated Supply Voltage:
200...240 V - 15...10 % || 380...480 V - 15...10 %
Status Led:
1 LED (Red) servo drive voltage
Network Frequency:
47.5...63 Hz
Discrete Input Logic:
positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1
