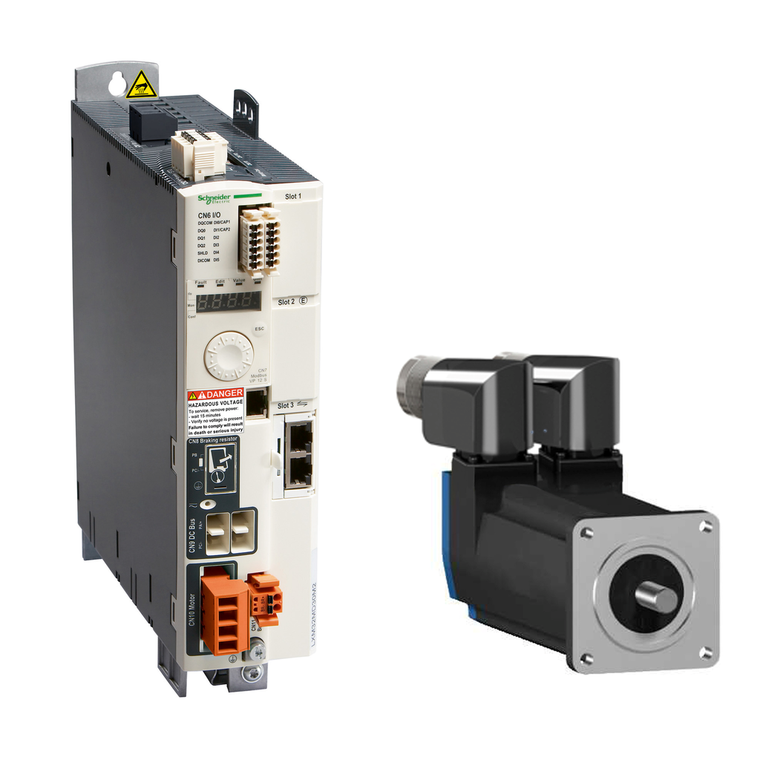

Schneider Electric LXM32SU90M2 Lxm32S Servo Drive Sercos 200#240V Singl

Schneider Electric LXM32SU90M2 Lxm32S Servo Drive Sercos 200#240V Singl

Schneider Electric
SKU:
LXM32SU90M2
|
UPC:
3606480694820
$1,528.19
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 7kW. The motion servo drive features integrated EMC filter. It offers 2 capture discrete inputs and 3 discrete outputs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V, a continuous output current of 3A at 8kHz and a continuous power of 300W at 115V. It is furnished with RJ45 connector (labelled CN7) for Modbus. It offers electrical isolation between power and control. It provides Modbus and SERCOS III communication interface. It is an IP20 rated product. Its dimensions are 68mm (width) x 237mm (depth) x 270mm (height). It weighs 1.8kg. This product is certified by CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BSH (70mm, 1 motor stack). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Additional Information
Discrete Input Logic:
positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1
Discrete Output Voltage:
<= 30 V DC
Type Of Cable:
single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Number Of Addresses:
1-247 Modbus
[Us] Rated Supply Voltage:
100...120 V - 15...10 % || 200...240 V - 15...10 %
Pvc Free:
Yes
Overvoltage Category:
III
Electrical Connection:
terminal 3 mm², AWG 12 CN8)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Compatibility:
servo motor BMH 70 mm, 1
Electrical Isolation:
between power and control
Continuous Output Current:
3 A 8 kHz
Warranty:
18 months
Product Or Component Type:
motion servo drive
Product Certifications:
CSA
Line Current:
5.2 A 90 % 115 V, with external line choke 2 mH || 6.3 A 107 % 230 V, with external line choke 2 mH || 5.4 A 159 % 115 V, without line choke || 4.5 A 166 % 230 V, without line choke
Switching Frequency:
8 kHz
Net Weight:
1.8 kg
Environmental Disclosure:
ENVPEP110705EN
Discrete Input Voltage:
24 V DC capture
Status Led:
1 LED (Red) servo drive voltage
Circularity Profile:
ENVEOLI110605EN
Sampling Duration:
0.25 ms
Height:
270 mm
Operating Position:
vertical +/- 10 degree
China Rohs Regulation:
X
Transmission Rate:
9600, 19200, 38400 bps 40-40 m Modbus
Physical Interface:
2-wire RS485 multidrop Modbus
Connector Type:
RJ45 (labelled CN7) Modbus
Ip Degree Of Protection:
IP20 EN/IEC 60529
Contact Bounce Time:
<= 1 ms compliment of STO_A, compliment of STO_B
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Signalling Function:
display of faults 7 segments
Response Time On Output:
250 µs DO)discrete
Nominal Power:
0.3 kW 115 V 8 kHz || 0.5 kW 230 V 8 kHz
Range Of Product:
Lexium 32
Discrete Output Number:
3
Mercury Free:
Yes
Safety Level:
SIL 3 EN/IEC 61508
Relative Humidity:
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Type Of Cooling:
natural convection
Tightening Torque:
CN8 0.5-0.5 N.m
Environmental Characteristic:
classes 3C1 IEC 60721-3-3
Rohs Exemption Information:
Yes
Continuous Power:
400 W 115 V || 900 W 230 V
Ambient Air Temperature For Storage:
-25-70 °C
Standards:
EN/IEC 61800-3
Width:
68 mm
Braking Current:
50 mA
Communication Interface:
Modbus, Integrated || SERCOS III, Integrated
Output Voltage:
<= power supply voltage
Marking:
CE
Shock Resistance:
15 gn 11 ms EN/IEC 60028-2-27
Network Frequency:
47.5...63 Hz
Electromagnetic Compatibility:
conducted EMC EN 55011 class A group 1
Format Of The Drive:
book
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Response Time:
<= 5 ms compliment of STO_A, compliment of STO_B
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Safety Function:
STO (safe torque off), Integrated
Discrete Output Logic:
positive or negative DO)EN/IEC 61131-2
Depth:
237 mm
Vibration Resistance:
1 gn 13-150 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Operation:
0-50 °C UL
Discrete Input Number:
2 capture
Discrete Output Type:
logic DO)24 V DC
Supply Frequency:
50/60 Hz - 5...5 %
Emc Filter:
integrated
Discrete Input Type:
capture CAP
Sustainable Offer Status:
Green Premium product
Device Short Name:
LXM32S
Phase:
single phase
Pollution Degree:
2 EN/IEC 61800-5-1
Output Current 3S Peak:
6 A 115 V 5 s || 9 A 230 V 5 s
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Supply Voltage Limits:
85-132 V || 170-264 V
Maximum Leakage Current:
30 mA
