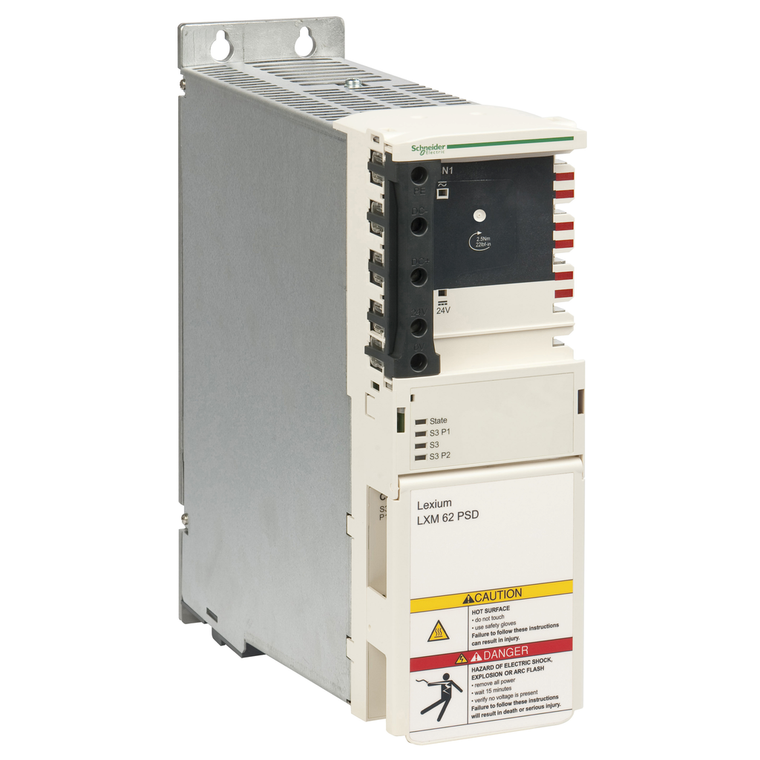

Schneider Electric LXM62PD84A11000 Power Supply Lxm 62P 42/84 A, Acckit

(No reviews yet) Write a Review

Write a Review

Schneider Electric LXM62PD84A11000 Power Supply Lxm 62P 42/84 A, Acckit

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LXM62PD84A11000

UPC:

3606485306070

MPN:

Condition:

New

Peak Current:

42 A single phase AC 1 s || 84 A three phase AC 1 s

Product Or Component Type:

power supply

Supply Frequency:

50/60 Hz +/- 5 %

Maximum Power:

44.2 kW 400 V three phase AC || 53.2 kW 480 V three phase AC

Physical Interface:

SERCOS III

Width:

89.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP20 EN/IEC 60721-3-3 with plugged-in connectors)

Safety Level:

can reach SIL 2 EN 61508 || can reach PL d/category 3 EN/ISO 13849-1

Pollution Degree:

2 EN/IEC 60721-3-3

Component Name:

LXM62

Overvoltage Category:

III EN 61800-5-1

Environmental Characteristic:

3K3 IEC 60721-3-3 5-85 %

Rohs Exemption Information:

Yes

Maximum Dc Bus Voltage:

860 V

Environmental Disclosure:

ENVPEP1406028EN

Ambient Air Temperature For Storage:

-25-55 °C

Power Supply Output Current:

84 A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Time:

15 min

Shock Resistance:

100 m/s² in operation EN/IEC 60721-3-3 || 300 m/s² during transport EN/IEC 60721-3-3

Supply Circuit Type:

AC

Height:

310 mm

Ambient Air Temperature For Operation:

40-55 °C with current derating of 2 % per °C) || 5-40 °C

Permanent Braking Power:

400 W

Circularity Profile:

ENVEOLI1406028EN

Marking:

CE

Vibration Resistance:

10 m/s² EN/IEC 60721-3-3

Mercury Free:

Yes

Maximum Braking Power:

46 kW

Bus Voltage:

270-700 V

Range Of Product:

PacDrive 3

Standards:

UL 508C || EN/IEC 61800-5-1 || EN/IEC 61800-3

Product Certifications:

CSA || UL

Warranty:

18 months

Net Weight:

6.3 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Cable Capacity:

1.36 mF

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

X

Output Type:

2 relays volt-free contacts

Line Rated Current:

21 A single phase AC || 42 A three phase AC

Nominal Power:

22.1 kW 400 V three phase AC || 26.6 kW 480 V three phase AC

Braking Resistance:

15 Ohm

Depth:

270 mm

[Uc] Control Circuit Voltage:

24 V DC - 20...25 %)

[Us] Rated Supply Voltage:

400 V three phase - 10...10 %) || 230 V three phase - 10...10 %) || 230 V single phase - 10...10 %)

Pvc Free:

Yes
