- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Utilisation Category:
- category A EN/IEC 60947-2
- Mechanical Durability:
- 20000 cycles
- Heat Dissipation:
- 24.4-24.4 W 415 V - 63 A
- 9 Mm Pitches:
- 8
- Standards:
- EN/IEC 60947-2
- Circularity Profile:
- N/A
- Network Type:
- DC || AC
- Mounting Support:
- DIN rail
- Range:
- Multi9
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Connections - Terminals:
- tunnel type terminal top or bottom) 1.5-35 mm² - rigid || tunnel type terminal top or bottom) 1.5-35 mm² - flexible || tunnel type terminal top or bottom) 1.5-35 mm² - flexible with ferrule
- Mounting Mode:
- clip-on
- Control Type:
- toggle
- Tropicalisation:
- 2 IEC 60068-1
- Curve Code:
- C
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Ambient Air Temperature For Operation:
- -30-70 °C
- Ambient Air Temperature For Storage:
- -40-80 °C
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 4P
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 40 kA 100 % EN/IEC 60947-2 - <= 250 V DC
- Electrical Durability:
- 10000 cycles
- Overvoltage Category:
- IV
- Pollution Degree:
- 3 EN/IEC 60947-2
- Product Certifications:
- EAC || CCC
- Net Weight:
- 0.48 kg

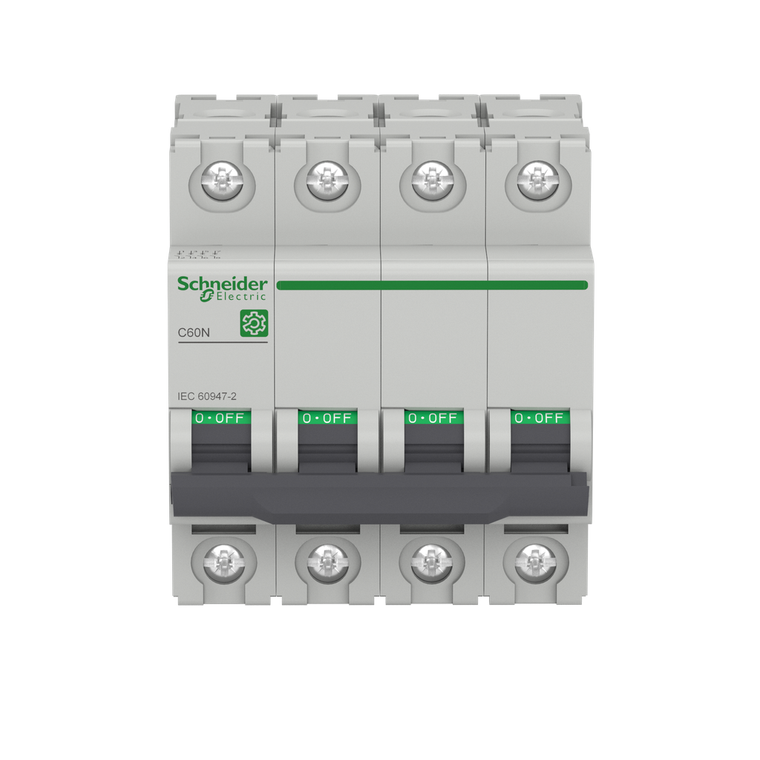

- Product Name:
- Multi9 C60
- Local Signalling:
- ON/OFF indication
- Number Of Protected Poles:
- 4
- Halogen Content Performance:
- Halogen free product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1304004EN
- Product Or Component Type:
- miniature circuit-breaker
- Sustainable Offer Status:
- Green Premium product
- Limitation Class:
- 3
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Breaking Capacity:
- 40 kA Icu <= 250 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Width:
- 72 mm
- Earth-Leakage Protection:
- separate block
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Device Short Name:
- C60N
- Line Rated Current:
- 63 A 50 °C EN/IEC 60947-2
- Depth:
- 72 mm
- Height:
- 81 mm
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 250 V DC
- Provision For Padlocking:
- padlockable
- Contact Position Indicator:
- yes
- Device Application:
- distribution
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Color:
- Gray
- Relative Humidity:
- 95-95 % 55-55 °C
