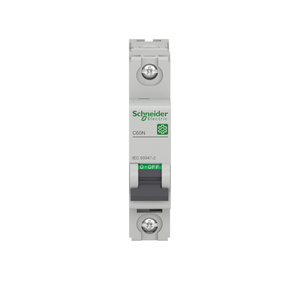

Schneider Electric M9F12101 Multi9 C60N 1P D 1A 10Ka 240V Mcb
Schneider Electric
$96.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 1A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Breaking Capacity:
- 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Product Name:
- Multi9 C60
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Limitation Class:
- 3
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Relative Humidity:
- 95-95 % 55-55 °C
- Control Type:
- toggle
- Network Frequency:
- 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Depth:
- 72 mm
- Tightening Torque:
- 2-2 N.m top or bottom
- Range:
- Multi9
- Number Of Protected Poles:
- 1
- Color:
- Gray
- Width:
- 18 mm
- Earth-Leakage Protection:
- separate block
- Standards:
- EN/IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Overvoltage Category:
- IV
- Magnetic Tripping Limit:
- 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
- Line Rated Current:
- 1 A 50 °C EN/IEC 60947-2
- Mounting Mode:
- clip-on
- Network Type:
- AC || DC
- Trip Unit Technology:
- thermal-magnetic
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Ambient Air Temperature For Storage:
- -40-80 °C
- 9 Mm Pitches:
- 2
- Device Application:
- distribution
- Mechanical Durability:
- 20000 cycles
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Compliant with Exemptions
- Tropicalisation:
- 2 IEC 60068-1
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
- Ambient Air Temperature For Operation:
- -30-70 °C
- Environmental Disclosure:
- ENVPEP1304004EN
- Pollution Degree:
- 3 EN/IEC 60947-2
- Poles Description:
- 1P
- Curve Code:
- D
- Mounting Support:
- DIN rail
- Utilisation Category:
- category A EN/IEC 60947-2
- Net Weight:
- 0.12 kg
- Halogen Content Performance:
- Halogen free product
- Provision For Padlocking:
- padlockable
- Height:
- 81 mm
- Product Certifications:
- EAC || KC || CCC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Contact Position Indicator:
- yes
- Device Short Name:
- C60N
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- ON/OFF indication
- Heat Dissipation:
- 2.3-2.3 W 240 V - 1 A
- Product Or Component Type:
- miniature circuit-breaker
- Rohs Exemption Information:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
- Circularity Profile:
- N/A
- Electrical Durability:
- 10000 cycles
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
