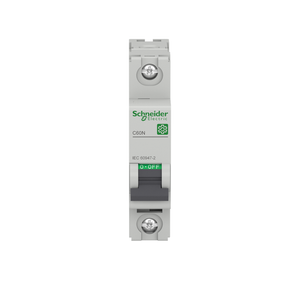

Schneider Electric M9F12102 Multi9 C60N 1P D 2A 10Ka 240V Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F12102 Multi9 C60N 1P D 2A 10Ka 240V Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F12102

UPC:

3606480576591

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Electrical Durability:

10000 cycles

Overvoltage Category:

IV

Utilisation Category:

category A EN/IEC 60947-2

Mounting Mode:

clip-on

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Application:

distribution

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Control Type:

toggle

Standards:

EN/IEC 60947-2

Mounting Support:

DIN rail

Breaking Capacity:

15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2

Height:

81 mm

Eu Rohs Directive:

Compliant with Exemptions

Product Certifications:

EAC || KC || CCC

Relative Humidity:

95-95 % 55-55 °C

Line Rated Current:

2 A 50 °C EN/IEC 60947-2

Environmental Disclosure:

ENVPEP1304004EN

Magnetic Tripping Limit:

12 x In +/- 20 % AC || 17 x In +/- 20 % DC

Ambient Air Temperature For Storage:

-40-80 °C

Product Or Component Type:

miniature circuit-breaker

Pollution Degree:

3 EN/IEC 60947-2

Heat Dissipation:

2.6-2.6 W 240 V - 2 A

Product Name:

Multi9 C60

Device Short Name:

C60N

Curve Code:

D

Provision For Padlocking:

padlockable

Rohs Exemption Information:

Yes

Tightening Torque:

2-2 N.m top or bottom

Net Weight:

0.12 kg

Width:

18 mm

Poles Description:

1P

Wire Stripping Length:

14 mm for top or bottom connection

Tropicalisation:

2 IEC 60068-1

Suitability For Isolation:

yes EN/IEC 60947-2

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC

9 Mm Pitches:

2

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC

Depth:

72 mm

Network Type:

AC || DC

Number Of Protected Poles:

1

Color:

Gray

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Mercury Free:

Yes

Network Frequency:

50/60 Hz

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule

[Ui] Rated Insulation Voltage:

500 V AC 50/60 Hz EN/IEC 60947-2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

N/A

Trip Unit Technology:

thermal-magnetic

Limitation Class:

3

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Earth-Leakage Protection:

separate block

Ambient Air Temperature For Operation:

-30-70 °C

Local Signalling:

ON/OFF indication

Mechanical Durability:

20000 cycles

Contact Position Indicator:

yes

Halogen Content Performance:

Halogen free product

Range:

Multi9
