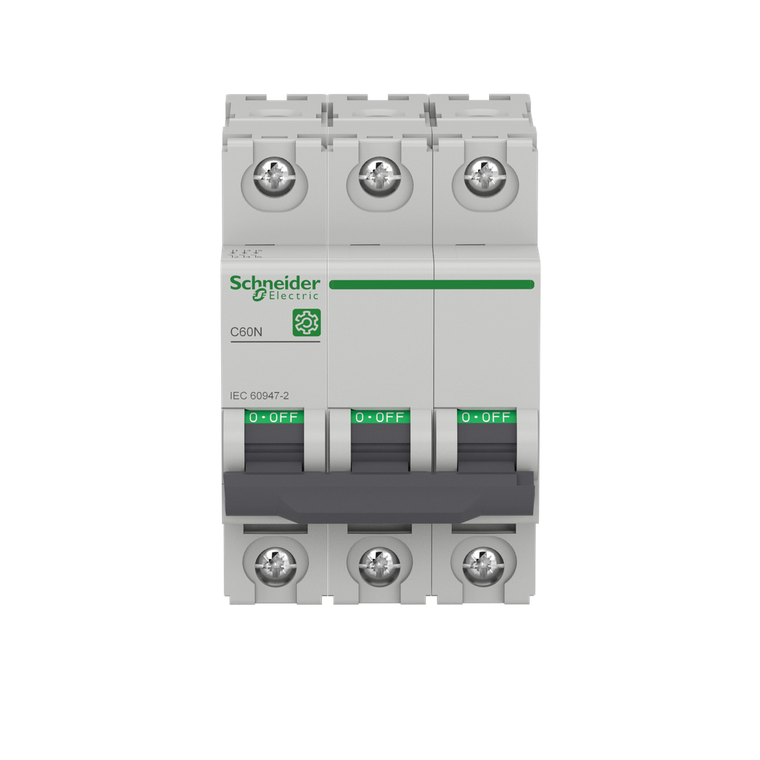

Schneider Electric M9F12306 Multi9 C60N 3P D 6A 10Ka 415V Mcb
Schneider Electric
$300.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Control Type:
- toggle
- Mounting Support:
- DIN rail
- 9 Mm Pitches:
- 6
- Breaking Capacity:
- 30 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Durability:
- 10000 cycles
- Local Signalling:
- ON/OFF indication
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Width:
- 54 mm
- Heat Dissipation:
- 8.1-8.1 W 415 V - 6 A
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Height:
- 81 mm
- Number Of Protected Poles:
- 3
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- Ambient Air Temperature For Operation:
- -30-70 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Limitation Class:
- 3
- Net Weight:
- 0.36 kg
- Overvoltage Category:
- IV
- Relative Humidity:
- 95-95 % 55-55 °C
- Depth:
- 72 mm
- Product Name:
- Multi9 C60
- Halogen Content Performance:
- Halogen free product
- Ambient Air Temperature For Storage:
- -40-80 °C
- Trip Unit Technology:
- thermal-magnetic
- Device Short Name:
- C60N
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Mounting Mode:
- clip-on
- Earth-Leakage Protection:
- separate block
- Tightening Torque:
- 2-2 N.m top or bottom
- Utilisation Category:
- category A EN/IEC 60947-2
- Product Certifications:
- EAC || KC || CCC
- Line Rated Current:
- 6 A 50 °C EN/IEC 60947-2
- Magnetic Tripping Limit:
- 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contact Position Indicator:
- yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Poles Description:
- 3P
- Mechanical Durability:
- 20000 cycles
- Standards:
- EN/IEC 60947-2
- Curve Code:
- D
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1304004EN
- Provision For Padlocking:
- padlockable
- Tropicalisation:
- 2 IEC 60068-1
- Color:
- Gray
- Device Application:
- distribution
- Range:
- Multi9
- Network Type:
- AC || DC
