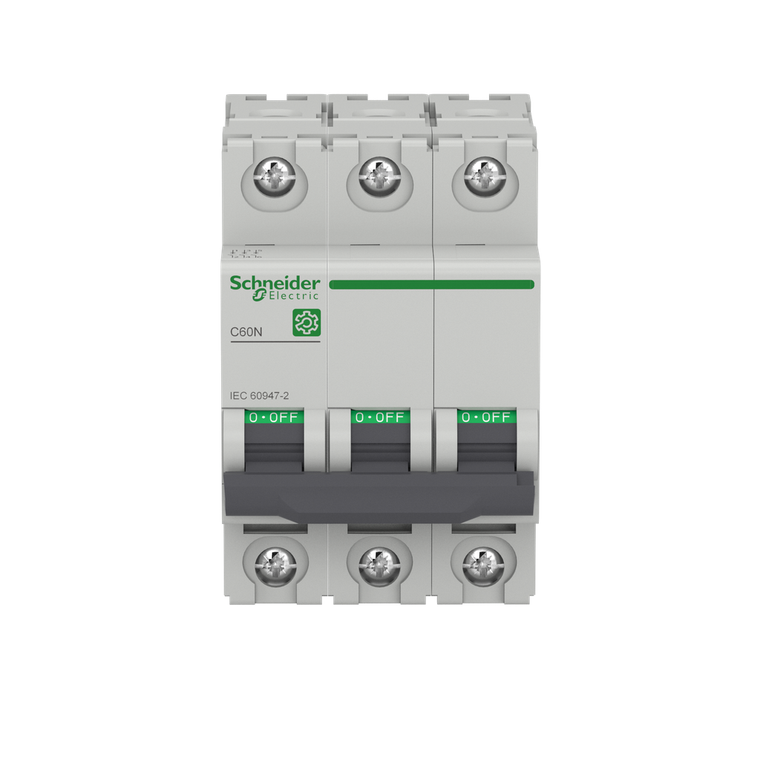

Schneider Electric M9F12316 Multi9 C60N 3P D 16A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F12316
UPC:
3606480576867
Condition:
New
Pollution Degree:
3 EN/IEC 60947-2
Standards:
EN/IEC 60947-2
Color:
Gray
Provision For Padlocking:
padlockable
Product Certifications:
EAC || KC || CCC
Depth:
72 mm
Product Name:
Multi9 C60
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Wire Stripping Length:
14 mm for top or bottom connection
Contact Position Indicator:
yes
Line Rated Current:
16 A 50 °C EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Device Short Name:
C60N
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Type:
DC || AC
Ambient Air Temperature For Storage:
-40-80 °C
Mounting Mode:
clip-on
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Ambient Air Temperature For Operation:
-30-70 °C
Overvoltage Category:
IV
Electrical Durability:
10000 cycles
Height:
81 mm
Limitation Class:
3
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Trip Unit Technology:
thermal-magnetic
Curve Code:
D
Earth-Leakage Protection:
separate block
Mounting Support:
DIN rail
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Control Type:
toggle
Net Weight:
0.36 kg
Environmental Disclosure:
ENVPEP1304004EN
9 Mm Pitches:
6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Application:
distribution
Network Frequency:
50/60 Hz
Poles Description:
3P
Product Or Component Type:
miniature circuit-breaker
Heat Dissipation:
7.5-7.5 W 415 V - 16 A
Utilisation Category:
category A EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Halogen Content Performance:
Halogen free product
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Number Of Protected Poles:
3
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Rohs Exemption Information:
Yes
Tightening Torque:
2-2 N.m top or bottom
Range:
Multi9
Local Signalling:
ON/OFF indication
Circularity Profile:
N/A
Mechanical Durability:
20000 cycles
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Relative Humidity:
95-95 % 55-55 °C
Width:
54 mm
Tropicalisation:
2 IEC 60068-1
Breaking Capacity:
30 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Brochure:
View
Datasheet:
View
$300.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
