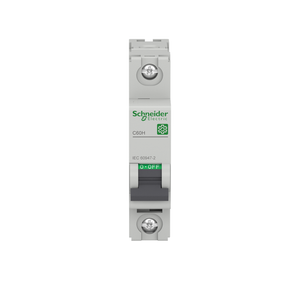

Schneider Electric M9F14102 Multi9 C60H 1P C 2A 15Ka 240V Mcb

Schneider Electric M9F14102 Multi9 C60H 1P C 2A 15Ka 240V Mcb

Schneider Electric
SKU:
M9F14102
|
UPC:
3606480577031
$125.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Height:
81 mm
Relative Humidity:
95-95 % 55-55 °C
Net Weight:
0.12 kg
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Color:
Gray
Depth:
72 mm
[Ics] Rated Service Breaking Capacity:
7.5 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 1.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 72 V DC
Control Type:
toggle
Poles Description:
1P
Rohs Exemption Information:
Yes
Product Name:
Multi9 C60
Contact Position Indicator:
yes
Circularity Profile:
N/A
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP1304004EN
Ambient Air Temperature For Storage:
-40-80 °C
Tightening Torque:
2-2 N.m top or bottom
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
EN/IEC 60947-2
Earth-Leakage Protection:
separate block
Device Short Name:
C60H
Trip Unit Technology:
thermal-magnetic
Curve Code:
C
Device Application:
distribution
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Provision For Padlocking:
padlockable
Line Rated Current:
2 A 50 °C EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Width:
18 mm
Eu Rohs Directive:
Compliant with Exemptions
Network Type:
AC || DC
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Electrical Durability:
10000 cycles
Overvoltage Category:
IV
Breaking Capacity:
20 kA Icu <= 72 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 15 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
Local Signalling:
ON/OFF indication
Utilisation Category:
category A EN/IEC 60947-2
Mechanical Durability:
20000 cycles
Mounting Support:
DIN rail
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wire Stripping Length:
14 mm for top or bottom connection
Tropicalisation:
2 IEC 60068-1
Mounting Mode:
clip-on
Product Certifications:
EAC || CCC
9 Mm Pitches:
2
Ambient Air Temperature For Operation:
-30-70 °C
Pollution Degree:
3 EN/IEC 60947-2
Heat Dissipation:
2.6-2.6 W 240 V - 2 A
Range:
Multi9
Number Of Protected Poles:
1
Product Or Component Type:
miniature circuit-breaker
Halogen Content Performance:
Halogen free plastic parts & cables product
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
