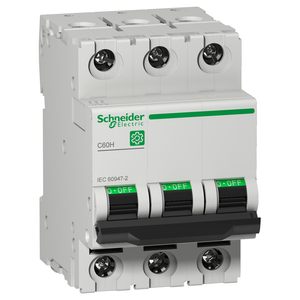

Schneider Electric M9F14310 Multi9 C60H 3P C 10A 15Ka 415V Mcb
Schneider Electric
$389.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Color:
- Gray
- Number Of Protected Poles:
- 3
- Poles Description:
- 3P
- Pollution Degree:
- 3 EN/IEC 60947-2
- Tropicalisation:
- 2 IEC 60068-1
- Device Short Name:
- C60H
- Electrical Durability:
- 10000 cycles
- Mercury Free:
- Yes
- Height:
- 81 mm
- Product Name:
- Multi9 C60
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
- Mounting Support:
- DIN rail
- Width:
- 54 mm
- Depth:
- 72 mm
- Breaking Capacity:
- 40 kA Icu <= 125 V DC EN/IEC 60947-2 || 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Environmental Disclosure:
- ENVPEP1304004EN
- 9 Mm Pitches:
- 6
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Rohs Exemption Information:
- Yes
- Network Type:
- DC || AC
- Mechanical Durability:
- 20000 cycles
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- Curve Code:
- C
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Local Signalling:
- ON/OFF indication
- [Ics] Rated Service Breaking Capacity:
- 15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 40 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- Circularity Profile:
- N/A
- Net Weight:
- 0.36 kg
- Earth-Leakage Protection:
- separate block
- Network Frequency:
- 50/60 Hz
- Ambient Air Temperature For Storage:
- -40-80 °C
- Provision For Padlocking:
- padlockable
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- EAC || CCC
- Halogen Content Performance:
- Halogen free plastic parts & cables product
- Utilisation Category:
- category A EN/IEC 60947-2
- Range:
- Multi9
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Contact Position Indicator:
- yes
- Standards:
- EN/IEC 60947-2
- Heat Dissipation:
- 5.4-5.4 W 415 V - 10 A
- Mounting Mode:
- clip-on
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Relative Humidity:
- 95-95 % 55-55 °C
- Tightening Torque:
- 2-2 N.m top or bottom
- Product Or Component Type:
- miniature circuit-breaker
- Line Rated Current:
- 10 A 50 °C EN/IEC 60947-2
- Overvoltage Category:
- IV
- Ambient Air Temperature For Operation:
- -30-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Control Type:
- toggle
