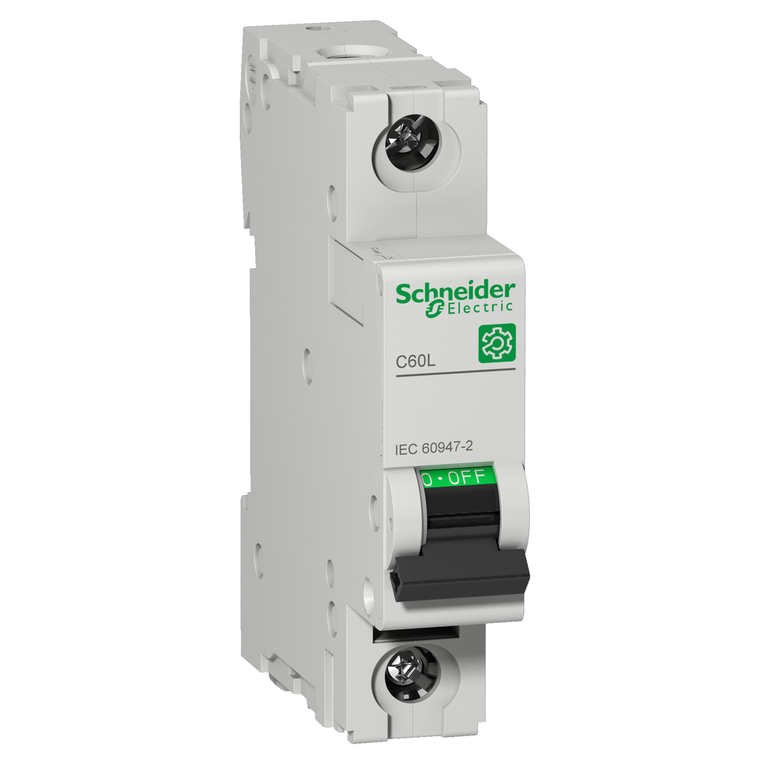

Schneider Electric M9F17106 Multi9 C60L 1P C 6A 25Ka 240 V Mcb Pack of 12
Schneider Electric
$2,700.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Circularity Profile:
- N/A
- Tropicalisation:
- 2 IEC 60068-1
- Earth-Leakage Protection:
- separate block
- Net Weight:
- 0.12 kg
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Network Frequency:
- 50/60 Hz
- Ambient Air Temperature For Operation:
- -30-70 °C
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Color:
- Gray
- Contact Position Indicator:
- yes
- Number Of Protected Poles:
- 1
- Depth:
- 72 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 18 mm
- Local Signalling:
- ON/OFF indication
- Provision For Padlocking:
- padlockable
- 9 Mm Pitches:
- 2
- Curve Code:
- C
- Limitation Class:
- 3
- Height:
- 81 mm
- Device Short Name:
- C60L
- Product Or Component Type:
- miniature circuit-breaker
- Network Type:
- AC || DC
- Tightening Torque:
- 2-2 N.m top or bottom
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP1304004EN
- Product Certifications:
- EAC || CCC
- Mounting Support:
- DIN rail
- Relative Humidity:
- 95-95 % 55-55 °C
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Line Rated Current:
- 6 A 50 °C EN/IEC 60947-2
- Mechanical Durability:
- 20000 cycles
- Heat Dissipation:
- 2.7-2.7 W 240 V - 6 A
- [Ics] Rated Service Breaking Capacity:
- 1.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 12.5 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 25 kA 100 % EN/IEC 60947-2 - <= 72 V DC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Control Type:
- toggle
- Trip Unit Technology:
- thermal-magnetic
- Poles Description:
- 1P
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Device Application:
- distribution
- Overvoltage Category:
- IV
- Pollution Degree:
- 3 EN/IEC 60947-2
- Halogen Content Performance:
- Halogen free plastic parts & cables product
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Mounting Mode:
- clip-on
- Mercury Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Product Name:
- Multi9 C60
- Utilisation Category:
- category A EN/IEC 60947-2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
- Electrical Durability:
- 10000 cycles
- Ambient Air Temperature For Storage:
- -40-80 °C
- Rohs Exemption Information:
- Yes
- Standards:
- EN/IEC 60947-2
- Range:
- Multi9
- Breaking Capacity:
- 25 kA Icu <= 72 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 25 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
