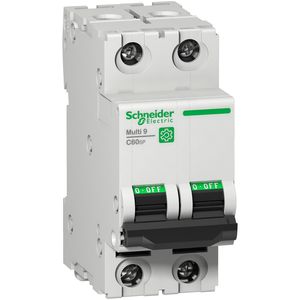

Schneider Electric M9F22263 Multi9 C60Sp 2P C 63A 5Ka 480Y/277V Mcb
Schneider Electric
$252.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Width:
- 36 mm
- Tropicalisation:
- 2 IEC 60068-1
- Device Application:
- distribution
- Provision For Padlocking:
- padlockable
- Curve Code:
- C
- Breaking Capacity:
- 10 kA AIR 240 V AC UL 1077 || 10 kA AIR 240 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA
- Mounting Support:
- DIN rail
- Control Type:
- toggle
- Color:
- Gray
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Short Name:
- C60SP
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Height:
- 81 mm
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Poles Description:
- 2P
- Relative Humidity:
- 95-95 % 55-55 °C
- Pollution Degree:
- 3 EN/IEC 60947-2
- Product Or Component Type:
- miniature circuit-breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Mounting Mode:
- clip-on
- Environmental Disclosure:
- ENVPEP1304004EN
- Mercury Free:
- Yes
- Electrical Durability:
- 10000 cycles
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Suitability For Isolation:
- yes EN/IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- 9 Mm Pitches:
- 4
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Range:
- Multi9
- Network Type:
- AC
- Mechanical Durability:
- 20000 cycles
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Contact Position Indicator:
- yes
- Earth-Leakage Protection:
- without
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
- Local Signalling:
- ON/OFF indication
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- N/A
- Depth:
- 72 mm
- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Ambient Air Temperature For Storage:
- -40-80 °C
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Product Certifications:
- IEC || CCC || UR || CSA
- Ambient Air Temperature For Operation:
- -30-70 °C
- Sustainable Offer Status:
- Green Premium product
- Number Of Protected Poles:
- 2
- Product Name:
- Multi9 C60
- Line Rated Current:
- 63 A 25 °C EN/IEC 60947-2
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Halogen Content Performance:
- Halogen free product
- Brochure:
- View
- Datasheet:
- View
