Schneider Electric M9F23432 Multi9 C60Sp 4P D 32A 10Ka 480Y/277V Mcb

Schneider Electric M9F23432 Multi9 C60Sp 4P D 32A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F23432
|
UPC:
3606481169242
$416.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

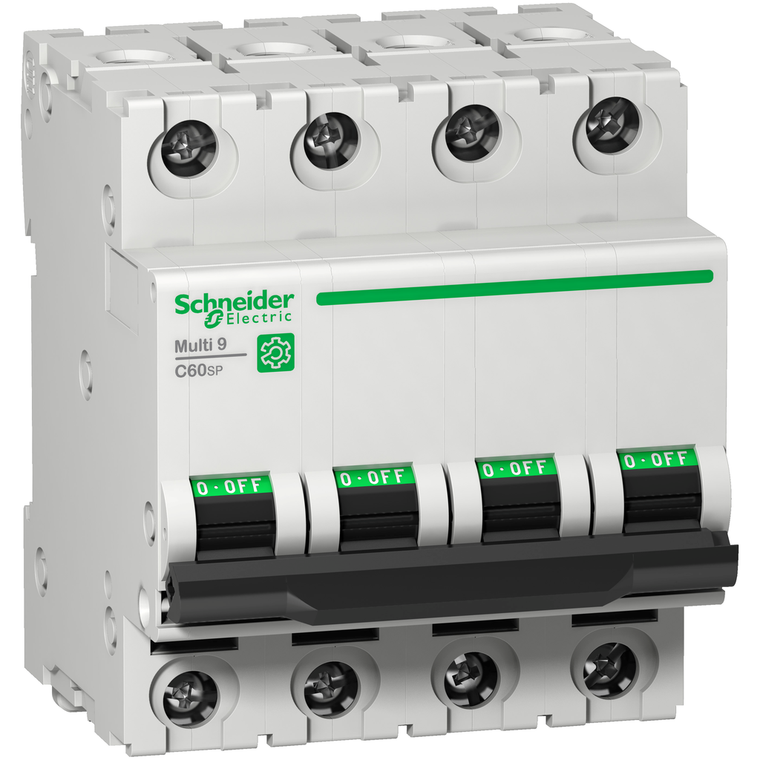

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 32A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Range:
Multi9
Environmental Disclosure:
ENVPEP1304004EN
Poles Description:
4P
9 Mm Pitches:
8
Product Name:
Multi9 C60
Curve Code:
D
Electrical Durability:
10000 cycles
Magnetic Tripping Limit:
12 x In +/- 20 % AC
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Sustainable Offer Status:
Green Premium product
Tropicalisation:
2 IEC 60068-1
Product Or Component Type:
miniature circuit-breaker
Mounting Support:
DIN rail
Ambient Air Temperature For Storage:
-40-80 °C
Number Of Protected Poles:
4
Width:
72 mm
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Control Type:
toggle
Circularity Profile:
N/A
Local Signalling:
ON/OFF indication
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Ambient Air Temperature For Operation:
-30-70 °C
Relative Humidity:
95-95 % 55-55 °C
Wire Stripping Length:
14 mm for top or bottom connection
Color:
Gray
Mechanical Durability:
20000 cycles
Mounting Mode:
clip-on
Pollution Degree:
3 EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Operating Altitude:
0...6561.68 ft (0...2000 m)
Network Type:
AC
Contact Position Indicator:
yes
Height:
81 mm
Line Rated Current:
32 A 25 °C EN/IEC 60947-2
Rohs Exemption Information:
Yes
Product Certifications:
IEC || CCC || UR || CSA
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
Tightening Torque:
3.5-3.5 N.m top or bottom
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Depth:
72 mm
Mercury Free:
Yes
Provision For Padlocking:
padlockable
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Device Short Name:
C60SP
Trip Unit Technology:
thermal-magnetic
Device Application:
distribution
Halogen Content Performance:
Halogen free product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Earth-Leakage Protection:
without
