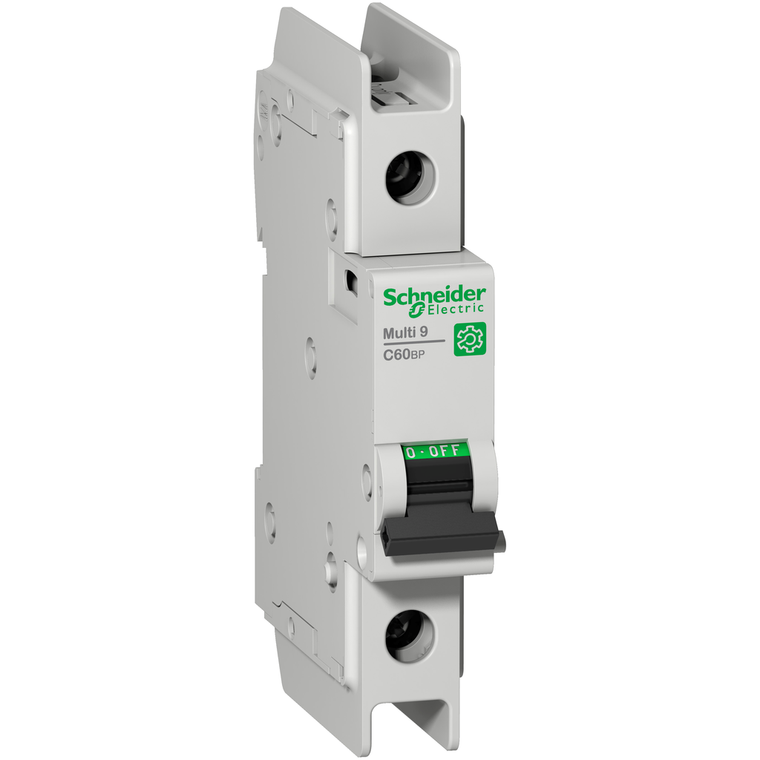

Schneider Electric M9F42115 Multi9 C60Bp 1P C 15A 10Ka 277V Ul489
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Product Name:
- Multi9 C60
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Range:
- Multi9
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Electrical Durability:
- 10000 cycles
- 9 Mm Pitches:
- 2
- Tropicalisation:
- 2 IEC 60068-1
- Eu Rohs Directive:
- Compliant with Exemptions
- Earth-Leakage Protection:
- without
- Product Certifications:
- IEC || CCC || CSA || UL
- Depth:
- 72 mm
- Network Type:
- DC || AC
- Number Of Protected Poles:
- 1
- Mounting Support:
- DIN rail
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Device Application:
- distribution
- Line Rated Current:
- 15 A 25 °C EN/IEC 60947-2
- Mechanical Durability:
- 20000 cycles
- Ambient Air Temperature For Storage:
- -40-80 °C
- Color:
- Gray
- Height:
- 103 mm
- Mounting Mode:
- clip-on
- Ambient Air Temperature For Operation:
- -30-70 °C
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- Suitability For Isolation:
- yes EN/IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Local Signalling:
- ON/OFF indication
- Pollution Degree:
- 3 EN/IEC 60947-2
- Poles Description:
- 1P
- Trip Unit Technology:
- thermal-magnetic
- Width:
- 18 mm
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Control Type:
- toggle
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Wire Stripping Length:
- 14 mm for top or bottom connection
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP1304004EN
- Curve Code:
- C
- Contact Position Indicator:
- yes
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- Relative Humidity:
- 95-95 % 55-55 °C
- Breaking Capacity:
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
- Device Short Name:
- C60BP
- Provision For Padlocking:
- padlockable
