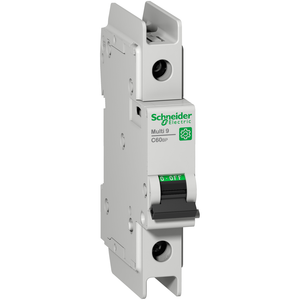

Schneider Electric M9F44140 Multi9 C60Bp 1P Z 40A 10Ka 240V Ul489 Pack of 12

Schneider Electric M9F44140 Multi9 C60Bp 1P Z 40A 10Ka 240V Ul489 Pack of 12

Schneider Electric
SKU:
M9F44140
|
UPC:
3.60648E+12
$2,160.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 40A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Relative Humidity:
95-95 % 55-55 °C
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
Height:
103 mm
Device Short Name:
C60BP
Depth:
72 mm
Number Of Protected Poles:
1
9 Mm Pitches:
2
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Circularity Profile:
N/A
Rohs Exemption Information:
Yes
Mechanical Durability:
20000 cycles
Mounting Mode:
clip-on
Product Or Component Type:
miniature circuit-breaker
Control Type:
toggle
Operating Altitude:
0...6561.68 ft (0...2000 m)
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
Earth-Leakage Protection:
without
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 60 V DC UL 489 || 10 kA AIR 240 V
Network Type:
AC || DC
Environmental Disclosure:
ENVPEP1304004EN
Width:
18 mm
Color:
Gray
Device Application:
distribution
Product Name:
Multi9 C60
Ambient Air Temperature For Operation:
-30-70 °C
Trip Unit Technology:
thermal-magnetic
Halogen Content Performance:
Halogen free product
Electrical Durability:
10000 cycles
Tropicalisation:
2 IEC 60068-1
Tightening Torque:
3.5-3.5 N.m top or bottom
Mounting Support:
DIN rail
Line Rated Current:
40 A 25 °C EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Pollution Degree:
3 EN/IEC 60947-2
Curve Code:
Z
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wire Stripping Length:
14 mm for top or bottom connection
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Product Certifications:
IEC || CCC || CSA || UL
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-40-80 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Suitability For Isolation:
yes EN/IEC 60947-2
Range:
Multi9
Provision For Padlocking:
padlockable
Contact Position Indicator:
yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status:
Green Premium product
Local Signalling:
ON/OFF indication
Poles Description:
1P
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Magnetic Tripping Limit:
3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Mercury Free:
Yes
