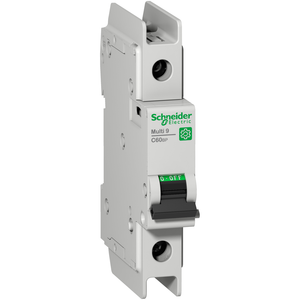

Schneider Electric M9F44170 Multi9 C60Bp 1P Z 0,5A 10Ka 277V Ul489

Schneider Electric M9F44170 Multi9 C60Bp 1P Z 0,5A 10Ka 277V Ul489

Schneider Electric
SKU:
M9F44170
|
UPC:
3606481169501
$125.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 0.5A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Mounting Support:
DIN rail
9 Mm Pitches:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Line Rated Current:
0.5 A 25 °C EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Product Name:
Multi9 C60
Height:
103 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Device Application:
distribution
Network Type:
DC || AC
Width:
18 mm
Tropicalisation:
2 IEC 60068-1
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
Product Or Component Type:
miniature circuit-breaker
Device Short Name:
C60BP
Tightening Torque:
2.5-2.5 N.m top or bottom
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Mounting Mode:
clip-on
Electrical Durability:
10000 cycles
Curve Code:
Z
Pollution Degree:
3 EN/IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Earth-Leakage Protection:
without
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Local Signalling:
ON/OFF indication
Halogen Content Performance:
Halogen free product
Eu Rohs Directive:
Compliant with Exemptions
Mechanical Durability:
20000 cycles
Number Of Protected Poles:
1
Circularity Profile:
N/A
Trip Unit Technology:
thermal-magnetic
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
Color:
Gray
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Operating Altitude:
0...6561.68 ft (0...2000 m)
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-80 °C
Rohs Exemption Information:
Yes
Depth:
72 mm
Poles Description:
1P
Sustainable Offer Status:
Green Premium product
Magnetic Tripping Limit:
3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC
Suitability For Isolation:
yes EN/IEC 60947-2
Provision For Padlocking:
padlockable
Ambient Air Temperature For Operation:
-30-70 °C
Relative Humidity:
95-95 % 55-55 °C
Range:
Multi9
Control Type:
toggle
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contact Position Indicator:
yes
Wire Stripping Length:
14 mm for top or bottom connection
Product Certifications:
IEC || CCC || CSA || UL
