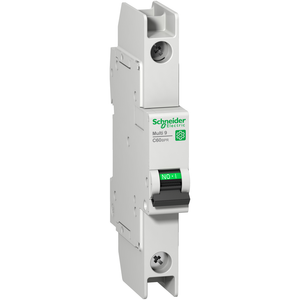

Schneider Electric M9F52125 Multi9 C60Bpr 1P C 25A 10Ka 277V Ul489
Schneider Electric
$122.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Product Name:
- Multi9 C60
- Trip Unit Technology:
- thermal-magnetic
- Mounting Mode:
- clip-on
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Number Of Protected Poles:
- 1
- Local Signalling:
- ON/OFF indication
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Poles Description:
- 1P
- Ambient Air Temperature For Storage:
- -40-80 °C
- Overvoltage Category:
- IV
- 9 Mm Pitches:
- 2
- Provision For Padlocking:
- padlockable
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant with Exemptions
- Pollution Degree:
- 3 EN/IEC 60947-2
- Mercury Free:
- Yes
- Product Certifications:
- IEC || CCC || CSA || UL
- Breaking Capacity:
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
- Earth-Leakage Protection:
- without
- Halogen Content Performance:
- Halogen free product
- Network Type:
- DC || AC
- Electrical Durability:
- 10000 cycles
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Relative Humidity:
- 95-95 % 55-55 °C
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Mounting Support:
- DIN rail
- Range:
- Multi9
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Height:
- 127 mm
- Environmental Disclosure:
- ENVPEP1304004EN
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Mechanical Durability:
- 20000 cycles
- Device Short Name:
- C60BPR
- Sustainable Offer Status:
- Green Premium product
- Curve Code:
- C
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Tightening Torque:
- 2-2 N.m top or bottom
- Depth:
- 72 mm
- Line Rated Current:
- 25 A 25 °C EN/IEC 60947-2
- Contact Position Indicator:
- yes
- Width:
- 18 mm
- Connections - Terminals:
- ring terminal top or bottom)
- Color:
- Gray
- Product Or Component Type:
- miniature circuit-breaker
- Ambient Air Temperature For Operation:
- -30-70 °C
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Circularity Profile:
- N/A
- Tropicalisation:
- 2 IEC 60068-1
- Control Type:
- toggle
