Schneider Electric M9F52225 Multi9 C60Bpr 2P C 25A 10Ka 480Y/277V
Schneider Electric
$261.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

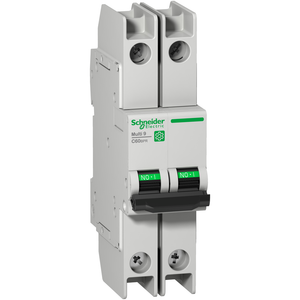

Schneider Electric M9F52225 Multi9 C60Bpr 2P C 25A 10Ka 480Y/277V
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Device Short Name:
- C60BPR
- Contact Position Indicator:
- yes
- 9 Mm Pitches:
- 4
- Ambient Air Temperature For Operation:
- -30-70 °C
- Product Certifications:
- IEC || CCC || CSA || UL
- Network Type:
- AC || DC
- Electrical Durability:
- 10000 cycles
- Pollution Degree:
- 3 EN/IEC 60947-2
- Ambient Air Temperature For Storage:
- -40-80 °C
- Height:
- 127 mm
- Width:
- 36 mm
- Trip Unit Technology:
- thermal-magnetic
- Local Signalling:
- ON/OFF indication
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % GB 14048.2 - 240 V AC || 7.5 kA 75 % GB 14048.2 || 15 kA 75 % GB 14048.2 || 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 15 kA 75 % EN/IEC 60947-2 - 415 V AC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Line Rated Current:
- 25 A 25 °C EN/IEC 60947-2
- Mechanical Durability:
- 20000 cycles
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Overvoltage Category:
- IV
- Rohs Exemption Information:
- Yes
- Relative Humidity:
- 95-95 % 55-55 °C
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Tropicalisation:
- 2 IEC 60068-1
- Circularity Profile:
- N/A
- Mounting Support:
- DIN rail
- Environmental Disclosure:
- ENVPEP1304004EN
- Earth-Leakage Protection:
- without
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Control Type:
- toggle
- Tightening Torque:
- 2-2 N.m top or bottom
- Halogen Content Performance:
- Halogen free product
- Connections - Terminals:
- ring terminal top or bottom)
- Provision For Padlocking:
- padlockable
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Sustainable Offer Status:
- Green Premium product
- Number Of Protected Poles:
- 2
- Product Or Component Type:
- miniature circuit-breaker
- Color:
- Gray
- Curve Code:
- C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- Multi9
- Product Name:
- Multi9 C60
- Depth:
- 72 mm
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Poles Description:
- 2P
- Eu Rohs Directive:
- Compliant with Exemptions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Application:
- distribution
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Mounting Mode:
- clip-on
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Brochure:
- View
- Datasheet:
- View
