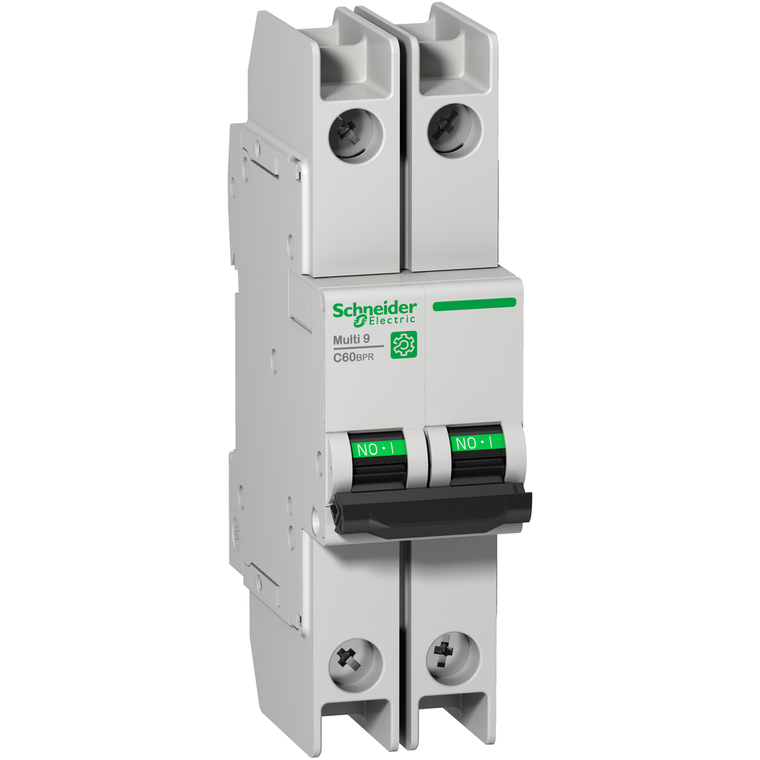

Schneider Electric M9F53206 Multi9 C60Bpr 2P D 6A 10Ka 480Y/277V Mcb
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Mounting Mode:
- clip-on
- Mechanical Durability:
- 20000 cycles
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Halogen Content Performance:
- Halogen free product
- Height:
- 127 mm
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Ambient Air Temperature For Storage:
- -40-80 °C
- 9 Mm Pitches:
- 4
- Number Of Protected Poles:
- 2
- Product Certifications:
- IEC || CCC || CSA || UL
- Curve Code:
- D
- Ambient Air Temperature For Operation:
- -30-70 °C
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Contact Position Indicator:
- yes
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % GB 14048.2 - 240 V AC || 7.5 kA 75 % GB 14048.2 || 15 kA 75 % GB 14048.2 || 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 15 kA 75 % EN/IEC 60947-2 - 415 V AC
- Device Application:
- distribution
- Trip Unit Technology:
- thermal-magnetic
- Relative Humidity:
- 95-95 % 55-55 °C
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- toggle
- Tightening Torque:
- 2-2 N.m top or bottom
- Mounting Support:
- DIN rail
- Network Type:
- DC || AC
- Width:
- 36 mm
- Line Rated Current:
- 6 A 25 °C EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP1304004EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Short Name:
- C60BPR
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Color:
- Gray
- Pollution Degree:
- 3 EN/IEC 60947-2
- Range:
- Multi9
- Provision For Padlocking:
- padlockable
- Earth-Leakage Protection:
- without
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Durability:
- 10000 cycles
- Depth:
- 72 mm
- Connections - Terminals:
- ring terminal top or bottom)
- Product Name:
- Multi9 C60
- Circularity Profile:
- N/A
- Local Signalling:
- ON/OFF indication
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tropicalisation:
- 2 IEC 60068-1
- Poles Description:
- 2P
- Magnetic Tripping Limit:
- 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
