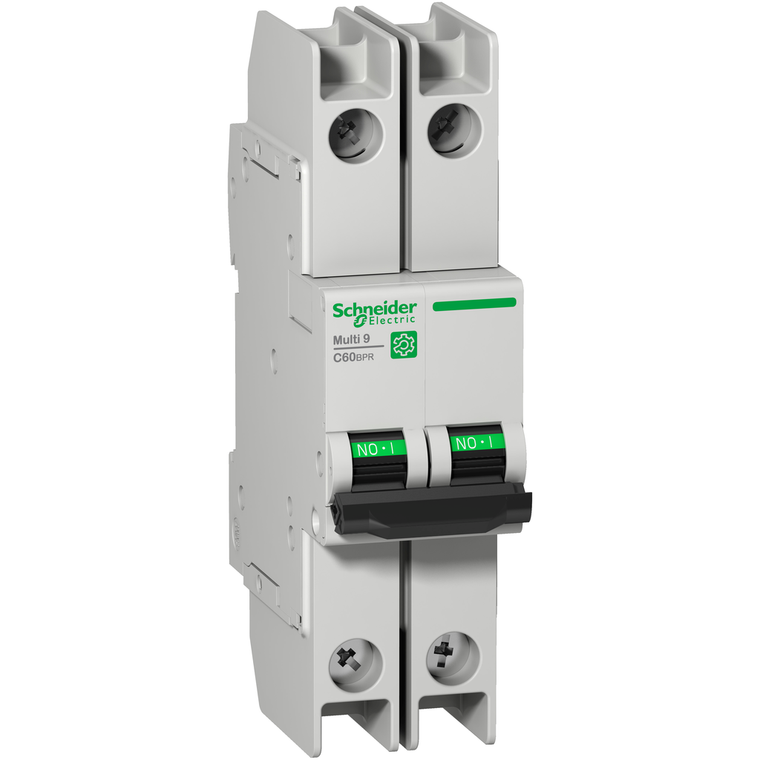

Schneider Electric M9F53225 Multi9 C60Bpr 2P D 25A 10Ka 480Y/277V

Schneider Electric M9F53225 Multi9 C60Bpr 2P D 25A 10Ka 480Y/277V

Schneider Electric
SKU:
M9F53225
|
UPC:
3606481171368
$261.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 25A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Curve Code:
D
Pollution Degree:
3 EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Halogen Content Performance:
Halogen free product
Eu Rohs Directive:
Compliant with Exemptions
Height:
127 mm
Provision For Padlocking:
padlockable
Connections - Terminals:
ring terminal top or bottom)
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Contact Position Indicator:
yes
Suitability For Isolation:
yes EN/IEC 60947-2
Product Certifications:
IEC || CCC || CSA || UL
Tropicalisation:
2 IEC 60068-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
C60BPR
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Local Signalling:
ON/OFF indication
Depth:
72 mm
Color:
Gray
Width:
36 mm
Relative Humidity:
95-95 % 55-55 °C
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % GB 14048.2 - 240 V AC || 7.5 kA 75 % GB 14048.2 || 15 kA 75 % GB 14048.2 || 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 15 kA 75 % EN/IEC 60947-2 - 415 V AC
9 Mm Pitches:
4
Poles Description:
2P
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
clip-on
Earth-Leakage Protection:
without
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Range:
Multi9
Tightening Torque:
2-2 N.m top or bottom
Operating Altitude:
0...6561.68 ft (0...2000 m)
Circularity Profile:
N/A
Network Type:
AC || DC
Control Type:
toggle
Device Application:
distribution
Ambient Air Temperature For Storage:
-40-80 °C
Ambient Air Temperature For Operation:
-30-70 °C
Number Of Protected Poles:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Line Rated Current:
25 A 25 °C EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Mechanical Durability:
20000 cycles
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Mercury Free:
Yes
Product Name:
Multi9 C60
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Mounting Support:
DIN rail
Rohs Exemption Information:
Yes
Electrical Durability:
10000 cycles
Brochure:
View
Datasheet:
View
