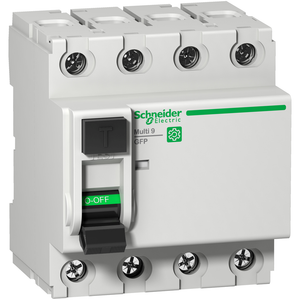

Schneider Electric M9R81463 Multi9 Gfp 4P 63A 26Ma A-Si 480Y/277V

(No reviews yet) Write a Review
SKU:
M9R81463
UPC:
3.60648E+12
Condition:
New
Earth-Leakage Sensitivity:
26 mA UL 1053 || 30 mA EN/IEC 61008-1
Tightening Torque:
3.5-3.5 N.m top or bottom
Sustainable Offer Status:
Green Premium product
Network Type:
AC
Device Short Name:
GFP
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
72 mm
Earth-Leakage Protection Class:
type A-SI (Super Immunised)
Tropicalisation:
2 IEC 60068-1
Electromagnetic Compatibility:
8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
Utilisation Category:
AC-23A EN/IEC 61008-1
Ambient Air Temperature For Storage:
-40-70 °C
Relative Humidity:
95-95 % 55-55 °C
Range:
Multi9
Environmental Disclosure:
ENVPEP2301023EN
Mounting Mode:
clip-on
Height:
81 mm
Product Certifications:
IEC || UL
Wire Stripping Length:
14 mm for top or bottom connection
Ambient Air Temperature For Operation:
-25-60 °C
Product Or Component Type:
residual current circuit breaker (RCCB)
Depth:
60 mm
[Ui] Rated Insulation Voltage:
440 V AC 50/60 Hz
Network Frequency:
50/60 Hz
Product Name:
Multi9 GFP
Control Type:
toggle
Color:
Gray
Line Rated Current:
63 A 40 °C EN/IEC 61008-1
Rated Conditional Short-Circuit Current:
Inc 10 kA 100 A gG
Locking Options Description:
padlocking in OFF position
Contact Position Indicator:
yes
9 Mm Pitches:
8
Pollution Degree:
3
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Neutral Position:
left
Poles Description:
4P
[Ue] Rated Operational Voltage:
480Y/277 V AC 60 Hz || 415 V AC 50 Hz
Local Signalling:
ON, OFF, fault trip
Mechanical Durability:
20000 cycles
Device Application:
distribution
Mercury Free:
Yes
Residual Current Tripping Technology:
voltage independent
Standards:
EN/IEC 61008-1 || UL 1053
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 61008-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Breaking And Making Capacity:
Idm 1500 A EN/IEC 61008-1
Eu Rohs Directive:
Compliant with Exemptions
Connections - Terminals:
tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
Circularity Profile:
N/A
Net Weight:
0.45 kg
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Support:
DIN rail
Earth-Leakage Protection Time Delay:
instantaneous
Brochure:
View
Datasheet:
View
$1,136.00

Description

This product is a Multi GFP residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, a sensitivity of 26mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
