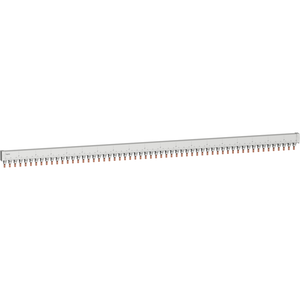

Schneider Electric M9XCP256 Multi9 2P 56 Modules Ul508 Comb Busbar
Multi9 - comb busbar - 2L - 18 mm pitch - 56 modules - 80A
- Range:
- Multi9
- Ip Degree Of Protection:
- IP20 with end-pieces and tooth covers
- Range Compatibility:
- Multi9 Multi9 C60BP
- Connection Pitch:
- 18 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 1000 V AC 50/60 Hz UL 508
- [Ie] Rated Operational Current:
- 80 A 40 °C
- Mounting Location:
- top tunnel type terminals
- Poles Configuration For 1 Way:
- 1 x 2P
- Insulation:
- insulated
- Accessory / Separate Part Category:
- connection accessory
- 9 Mm Pitches:
- 112
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ue] Rated Operational Voltage:
- 480 V AC 50/60 Hz Ph/Ph || 277 V AC 50/60 Hz Ph/N
- Standards:
- UL 508
- Width:
- 1008 mm
- Mounting Mode:
- horizontal
- Toxic Heavy Metal Free:
- Yes
- Distance Between Way:
- 36 mm
- Product Or Component Type:
- comb busbar
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Compliant
- Color:
- Light gray RAL 7035)
- Fire Resistance:
- 960 °C 30 s ) IEC 60695-2-1
- Connector Type:
- tooth
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Pollution Degree:
- 3
- Rohs Exemption Information:
- Yes
- Total Number Of 18 Mm Modules:
- 56
- Device Presentation:
- cuttable
- Mercury Free:
- Yes
- Number Of Ways:
- 28 ways 2 L
- Lines Description:
- 2L
