Schneider Electric

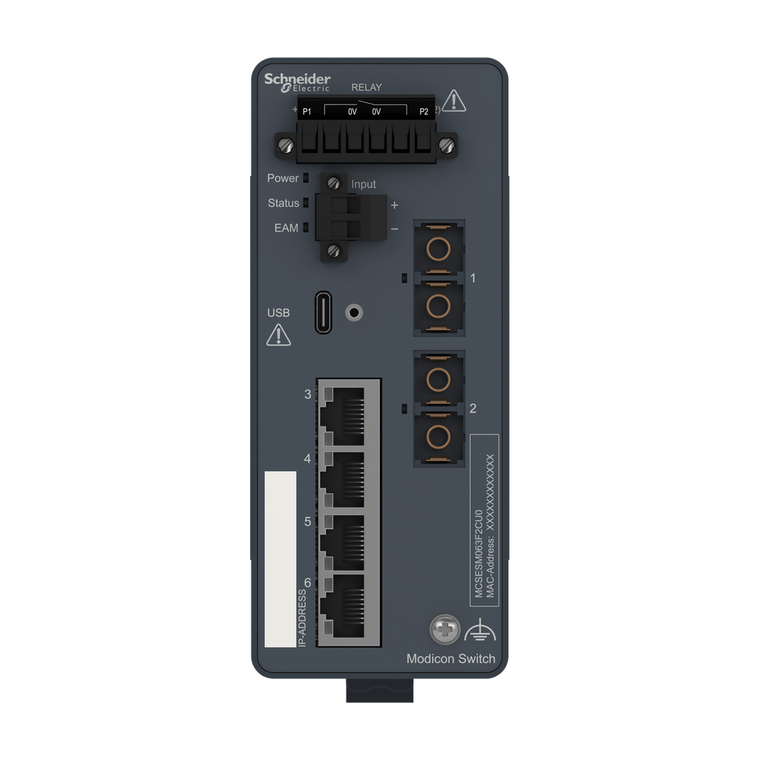

Schneider Electric MCSESM063F2CU0 Modicon Managed Switch 4Tx/2Fx-Mm

SKU:

MCSESM063F2CU0

UPC:

3606481463289

MPN:

Condition:

New

Electrical Connection:

removable connector 6 ways power supply

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Cable Distance Between Devices:

100 m copper cable

Integrated Connection Type:

duplex SC fiber optic || shielded RJ45 copper cable

Height:

142.8 mm

Cybersecurity:

port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner

Marking:

CE || cULus || RCM

Width:

57 mm

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Mercury Free:

Yes

Ethernet Cabling System:

TF switches

Diagnostics Run Time:

signal contact || self test || MAC notification

Range Of Product:

Modicon

Communication Port Protocol:

Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP

[Us] Rated Supply Voltage:

12...24 V

Environmental Disclosure:

ENVPEP2003018EN

Concept:

Transparent Ready

Product Certifications:

CE || UL || RCM || DNV || ATEX

Alarm Output:

1 voltfree contact 1 A

Ethernet Service:

configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG

Maximum Number Of Switches In A Ring:

50

Relative Humidity:

1-95 % non-condensing

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Power Consumption In W:

7 W

Sustainable Offer Status:

Green Premium product

Local Signalling:

for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)

Function Available:

security status || alarms (Traps) || system information || report

Attenuation:

0-11 dB 62.2/125 µm) || 0-8 dB 50/125 µm)

Port Ethernet:

100BASE-FX - 2 fiber optic || 10/100BASE-TX - 4 copper cable

Mounting Support:

35 mm symmetrical DIN rail

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

0.42 kg

Circularity Profile:

ENVEOLI2003018EN

Standards:

UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1

Product Or Component Type:

Ethernet TCP/IP managed switch

Ambient Air Temperature For Operation:

0-60 °C

Optic Fiber Length:

4 km 62.5/125 µm || 5 km 50/125 µm

Communication Service:

TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection

Ip Degree Of Protection:

IP30

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Redundancy:

HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP

China Rohs Regulation:

X

Transmission Support Medium:

multimode optical fiber fiber optic || twisted shielded pairs cable CAT 5E copper cable

Alarm Function:

power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed

Maximum Number Of Switches In Cascade:

unlimited

Depth:

117.6 mm

Supply Voltage Limits:

9.6-32 V DC SELV

Rohs Exemption Information:

Yes
