Schneider Electric MGN61534 Circuit-Breaker C60H-Dc 500Vdc 30A 2P C

Schneider Electric MGN61534 Circuit-Breaker C60H-Dc 500Vdc 30A 2P C

Schneider Electric
SKU:
MGN61534
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$392.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

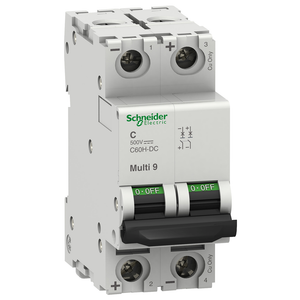

This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 30A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to GB 14048.2 standard and 20kA at 220VDC conforming to GB 14048.2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism improves its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 12VDC to 500VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.256kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Additional Information
Reach Free Of Svhc:
Yes
Poles Description:
2P
Ambient Air Temperature For Storage:
-40-85 °C
Tropicalisation:
2 IEC 60068-2 || 2 GB 14048.2
Tightening Torque:
3.5-3.5 N.m top or bottom
Curve Code:
C
Mounting Mode:
clip-on
Color:
Gray
[Ui] Rated Insulation Voltage:
500 V DC EN/IEC 60947-2
Circularity Profile:
N/A
Provision For Padlocking:
padlockable
Locking Options Description:
in position O
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Contact Position Indicator:
yes
Environmental Disclosure:
ENVPEP120608EN_V0
Utilisation Category:
category A EN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
-25-70 °C
Sustainable Offer Status:
Green Premium product
Toxic Heavy Metal Free:
Yes
Width:
36 mm
Limitation Class:
3 EN/IEC 60947-2
Product Name:
Multi9 C60H-DC
Electrical Durability:
3000 cycles L/R = 2 ms
Suitability For Isolation:
yes EN/IEC 60947-2
Product Certifications:
UR || CCC || IEC
Rohs Exemption Information:
Yes
Product Or Component Type:
miniature circuit-breaker
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid stranded || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible with ferrule || tun
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Wire Stripping Length:
14 mm for top or bottom connection
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % GB 14048.2 - 500 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 15 kA 75 % GB 14048.2 - 220 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC
Operating Altitude:
6561.68 ft (2000 m)
[Ue] Rated Operational Voltage:
12...500 V DC
Overvoltage Category:
IV
Control Type:
toggle
Device Application:
distribution
Warranty:
18 months
Comb Busbar And Distribution Block Compatibility:
top or bottom standard
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Number Of Protected Poles:
2
Network Type:
DC
Eu Rohs Directive:
Compliant
Height:
81 mm
Range:
Multi9
Relative Humidity:
95-95 % 55-55 °C
Line Rated Current:
30 A 25 °C
Depth:
73 mm
Earth-Leakage Protection:
without
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC
Breaking Capacity:
20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2 || 20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077
Standards:
UL 1077 || GB 14048.2 || EN/IEC 60947-2
Local Signalling:
ON/OFF indication
Net Weight:
0.256 kg
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Device Short Name:
C60H-DC
Pollution Degree:
3 EN/IEC 60947-2
Mercury Free:
Yes
9 Mm Pitches:
4
Mounting Support:
DIN rail
Mechanical Durability:
20000 cycles
Brochure:
View
Datasheet:
View
