Schneider Electric NSYCRN43200P Crn 400X300X200 One Pl Door W Ch

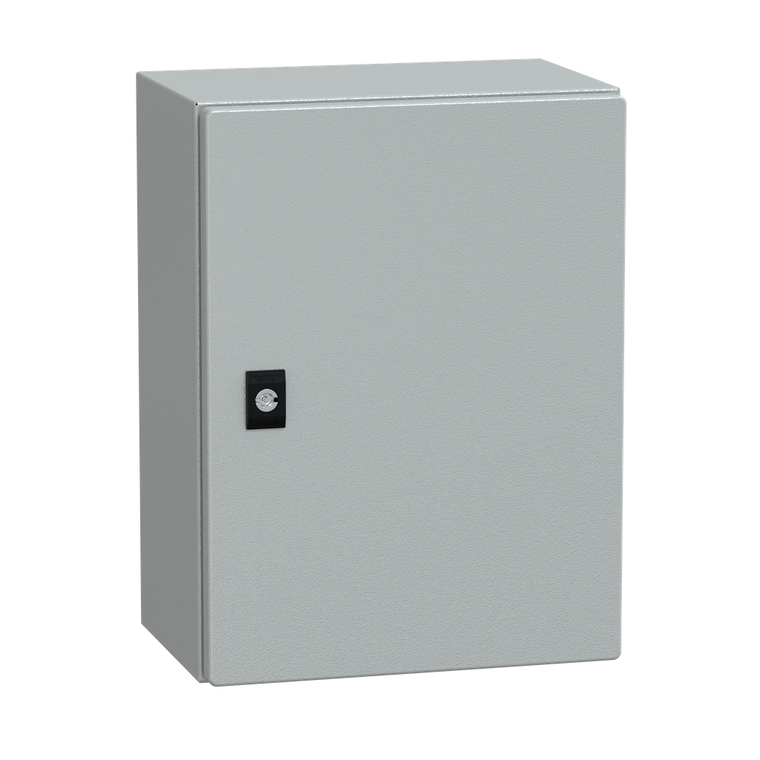

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 300 mm x (H) 400 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Sustainable Offer Status:
- Green Premium product
- Color:
- enclosure Gray RAL 7035)
- Ip Degree Of Protection:
- IP66 IEC 60529
- Enclosure Nominal Depth:
- 200 mm
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Product Or Component Type:
- compact enclosure
- Rohs Exemption Information:
- Yes
- Surface Finish:
- enclosure epoxy-polyester powder
- Standards:
- IEC 62208
- Range:
- Spacial
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Lock Type:
- 3 mm double-bar lock
- Warranty:
- 18 months
- Mounting Plate Description:
- plain
- Enclosure Nominal Width:
- 300 mm
- Material:
- enclosure steel || mounting plate galvanised steel
- Enclosure Nominal Height:
- 400 mm
- Mercury Free:
- Yes
- Product Certifications:
- cUL || UL || DNV-GL
- Net Weight:
- 6.946 kg
- Door Opening Side:
- reversible 120 °)
- Accessibility For Operation:
- front
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP100104EN
- Installation Accessory Type:
- wall-mounting
- Door Type:
- Solid
- Product Name:
- Spacial CRN
- Circularity Profile:
- N/A
- Number Of Doors:
- front face 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK10 IEC 62262
- Device Application:
- multi-purpose
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Type Of Gland Plate:
- standard
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
