Schneider Electric

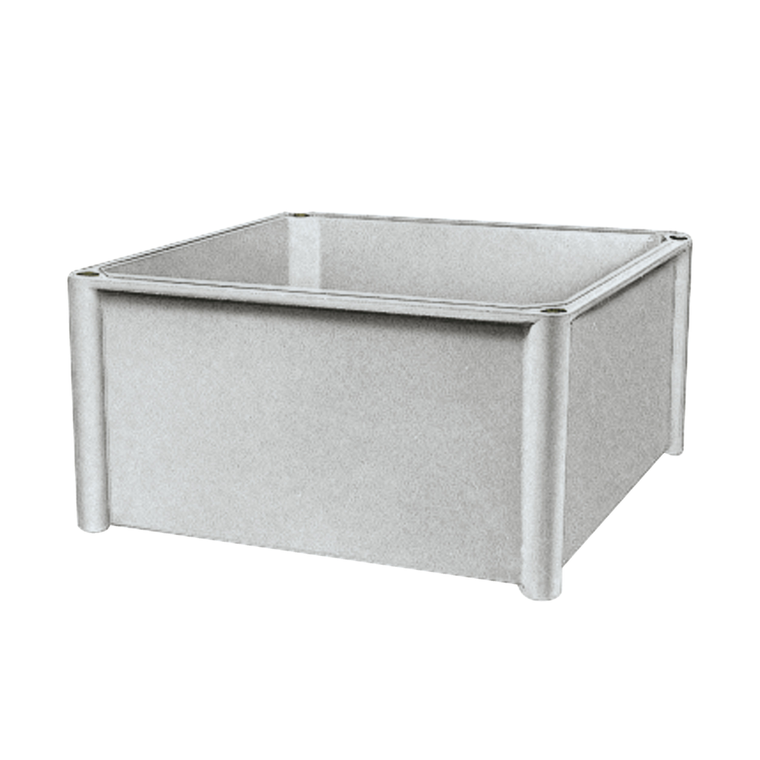

Schneider Electric NSYFPLS2727G 7035 Poly. Pls Body 27X27X13.5

SKU:

NSYFPLS2727G

UPC:

3606480773983

MPN:

Condition:

New

Enclosure Mounting:

wall mounted

Ik Degree Of Protection:

IK09 IEC 62262

Type Of Front Cover:

without

Ambient Air Temperature For Storage:

-30-70 °C

Range:

Thalassa

Device Short Name:

PLS

Device Application:

multi-purpose

Electrical Insulation Class:

class II

Product Name:

Thalassa PLS

Fire Resistance:

960 °C IEC 62208

Environmental Disclosure:

ENVPEP110704EN

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Color:

body Gray RAL 7035)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Material:

polyester reinforced with fibreglass

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Nominal Width:

270 mm

Enclosure Nominal Height:

270 mm

Product Certifications:

UL

Product Or Component Type:

insulating modular rear

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Standards:

IEC 62208 || NEMA classification 13 || NEMA 4X

Device Composition:

1 rear part on enclosure

Body Type:

one piece moulded

Enclosure Nominal Depth:

135 mm

Catalog:

View

Datasheet:

View
