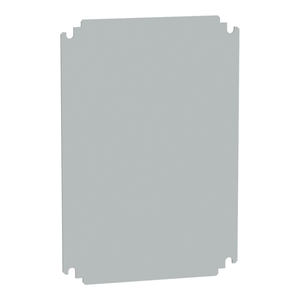

Schneider Electric NSYMF43 Microperf Mount Plate 400X300
Schneider Electric
$13.02
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP2202003EN
- Width:
- 350 mm
- Mounting Plate Description:
- microperforated
- Fixing Mode:
- screwed on backstuds M8 || by fixing element
- Depth:
- 125 mm
- Mounting Location:
- step slide || direct fixing on backstuds
- Accessory / Separate Part Category:
- mounting accessory
- Range:
- Spacial
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 250 mm
- Permanent Permissible Load:
- 60 kg
- Range Compatibility:
- Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
- Net Weight:
- 1.36 kg
- Enclosure Nominal Dimensions:
- H: 400 mm W: 300 mm || - H: 300 mm W: 400 mm
- Thickness:
- 1.8 mm
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free:
- Yes
- Device Application:
- multi-purpose
- Quantity Per Set:
- set of 1
- Variant Particularity:
- installation in enclosures with inverted dimensions
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Material:
- galvanised steel
- Product Or Component Type:
- mounting plate
