Schneider Electric

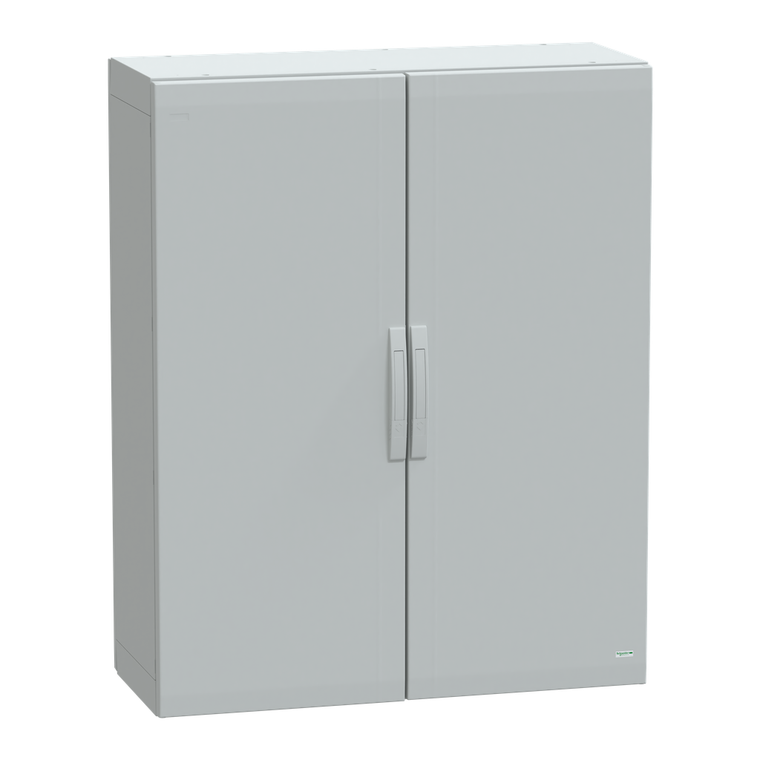

Schneider Electric NSYPLA12104G 7035 Fs Pol 1250X1000X420

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLA12104G 7035 Fs Pol 1250X1000X420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA12104G

UPC:

3606480774539

MPN:

Condition:

New

Door Opening Side:

right and left 120 °)

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Product Certifications:

DNV Marine || Veritas || UL/cUL listed

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Fire Resistance:

960 °C IEC 62208

Circularity Profile:

N/A

Enclosure Mounting:

floor-standing

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Standards:

IEC 62208 || UL 508 A

Door Type:

Solid front

Number Of Doors:

2

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP110505EN

Body Type:

sealed top and bottom part assembled with side parts

Removable Parts:

door by hinges || rear panel by fixing element

Enclosure Nominal Height:

1250 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

420 mm

Accessibility For Operation:

rear || front

Enclosure Nominal Width:

1000 mm

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Lock Type:

4 points lock, 5 mm double-bar

Product Or Component Type:

suitable enclosure

Range:

Thalassa

Device Short Name:

PLA

Device Application:

multi-purpose

Nema Degree Of Protection:

NEMA 13 || NEMA 12 || NEMA 1 || NEMA 2

Product Name:

Thalassa PLA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Datasheet:

View
