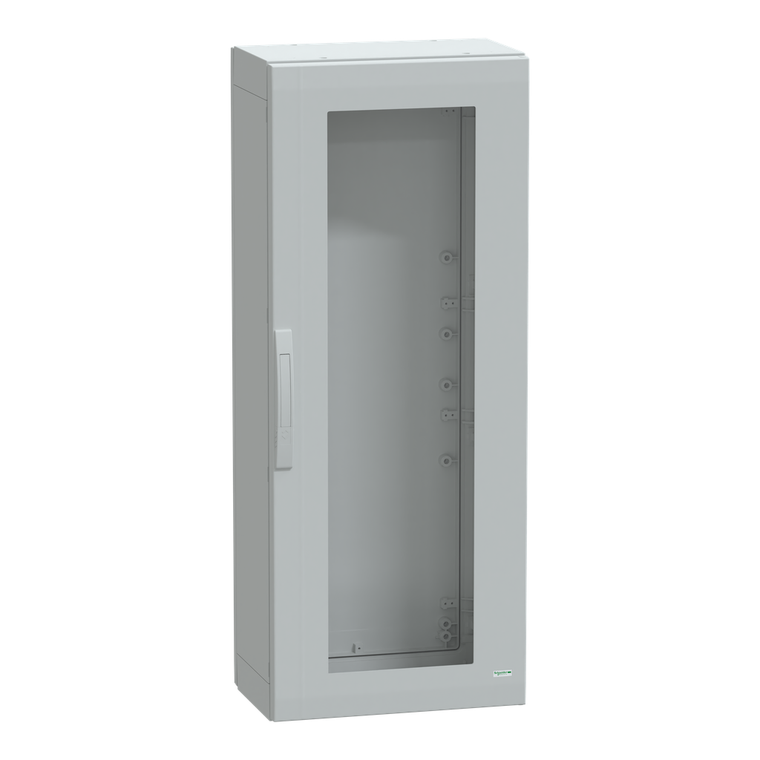

Schneider Electric NSYPLA1253TG 7035 Fs Pol 1250X500X320 Glazed

SKU:

NSYPLA1253TG

UPC:

3606480774607

MPN:

Condition:

New

Product Certifications:

Veritas || DNV Marine || UL/cUL listed

Number Of Doors:

1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fire Resistance:

960 °C IEC 62208

Rohs Exemption Information:

Yes

Body Type:

sealed top and bottom part assembled with side parts

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Range:

Thalassa

Product Name:

Thalassa PLA

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Width:

500 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Lock Type:

4 points lock, 5 mm double-bar

Door Opening Side:

reversible 120 °)

Electrical Insulation Class:

class II

Material:

polyester reinforced with fibreglass

Accessibility For Operation:

front || rear

Door Type:

transparent front

Standards:

UL 508 A || IEC 62208

Enclosure Nominal Height:

1250 mm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-35-90 °C

Removable Parts:

door by hinges || rear panel by fixing element

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Product Or Component Type:

suitable enclosure

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Enclosure Nominal Depth:

320 mm

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Device Short Name:

PLA

Color:

Gray RAL 7035)

Enclosure Mounting:

floor-standing

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 5 || NEMA 3X || NEMA 13 || NEMA 2 || NEMA 1 || NEMA 3S || NEMA 3 || NEMA 12 || NEMA 3R
