Schneider Electric

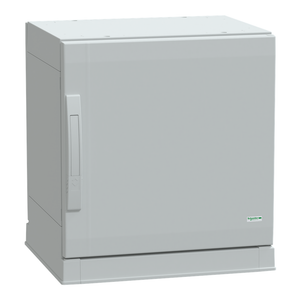

Schneider Electric NSYPLA554G 7035 Fs Pol 500X500X420

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLA554G 7035 Fs Pol 500X500X420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA554G

UPC:

3606480774935

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Color:

Gray RAL 7035)

Product Certifications:

DNV Marine || Veritas || UL/cUL listed

Electrical Insulation Class:

class II

Circularity Profile:

N/A

Device Application:

multi-purpose

Enclosure Mounting:

floor-standing

Product Name:

Thalassa PLA

Material:

polyester reinforced with fibreglass

Device Short Name:

PLA

Enclosure Nominal Depth:

420 mm

Removable Parts:

door by hinges || rear panel by fixing element

Standards:

IEC 62208 || UL 508 A

Body Type:

sealed top and bottom part assembled with side parts

Product Or Component Type:

suitable enclosure

Fire Resistance:

960 °C IEC 62208

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Accessibility For Operation:

rear || front

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 5 || NEMA 12 || NEMA 13 || NEMA 3S || NEMA 2 || NEMA 3X || NEMA 3R || NEMA 3 || NEMA 1

Lock Type:

2 points lock, 5 mm double-bar

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Sustainable Offer Status:

Green Premium product

Range:

Thalassa

Door Opening Side:

reversible 120 °)

Environmental Disclosure:

ENVPEP110505EN

Enclosure Nominal Width:

500 mm

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Door Type:

Solid front

Number Of Doors:

1

Ambient Air Temperature For Storage:

-35-90 °C

Enclosure Nominal Height:

500 mm

Catalog:

View

Datasheet:

View
