Schneider Electric NSYPLAZ1554G 7035 Fs Pol Plinth 1500X500X420
Schneider Electric
$1,724.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLAZ1554G 7035 Fs Pol Plinth 1500X500X420

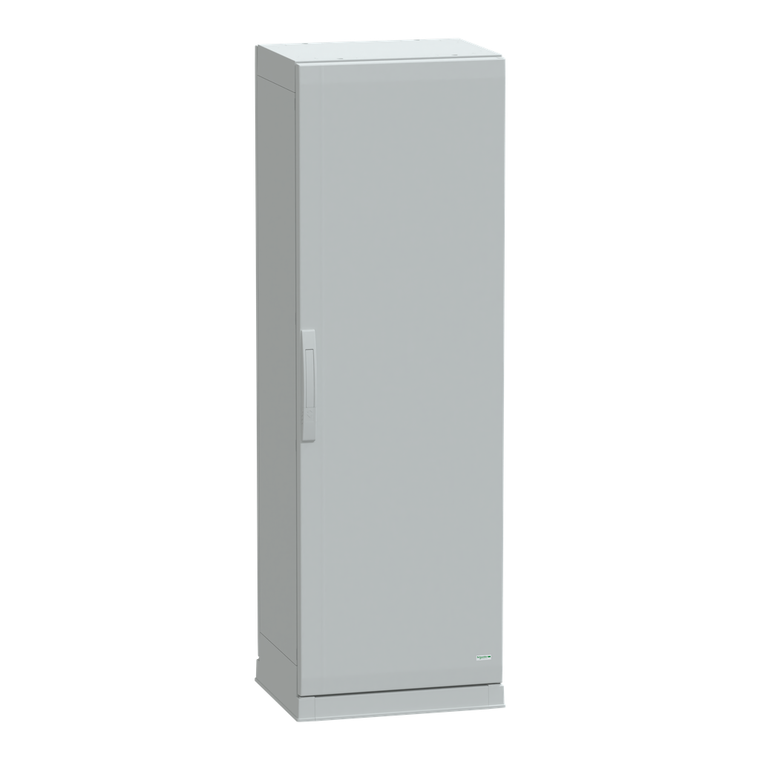

Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1500x500x420mm, IP54, IK10
- Removable Parts:
- door by hinges || rear panel by fixing element
- Enclosure Nominal Height:
- 1500 mm
- Range:
- Thalassa
- Device Short Name:
- PLAZ
- Environmental Disclosure:
- ENVPEP110505EN
- Device Composition:
- 1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 plinth
- Product Name:
- Thalassa PLA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Color:
- Gray RAL 7035)
- Electrical Insulation Class:
- class II
- Ambient Air Temperature For Storage:
- -35-90 °C
- Enclosure Mounting:
- floor-standing
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Number Of Doors:
- 1
- Material:
- polyester reinforced with fibreglass
- Fire Resistance:
- 960 °C IEC 62208
- Standards:
- IEC 62208
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Enclosure Nominal Width:
- 500 mm
- Product Certifications:
- Veritas
- Enclosure Nominal Depth:
- 420 mm
- Accessibility For Operation:
- front || rear || bottom
- Door Opening Side:
- reversible 120 °)
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Ik Degree Of Protection:
- IK10 IEC 62262 plain door)
- Product Or Component Type:
- suitable enclosure
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Door Type:
- Solid front
- Device Application:
- multi-purpose
- Ip Degree Of Protection:
- IP54 IEC 60529 plinth type open bottom)
- Body Type:
- sealed top and open bottom part assembled with side parts
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Datasheet:
- View
