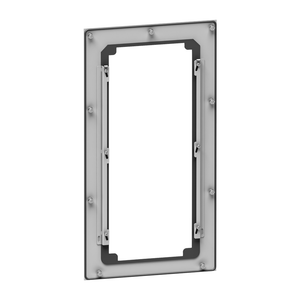

Schneider Electric NSYPTDS5 Kit Flush-Mounting Pour Atv T5
Schneider Electric
$971.49
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
KIT FLUSH-MOUNTING POUR ATV T5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Kit Composition:
- 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts || 1 x fixing accessories || 1 x drilling template || 1 x instruction sheet || 1 x edge protector profile, plastic || 1 x fan support || 1 x c
- Range:
- Spacial
- Environmental Disclosure:
- ENVPEP100104EN
- Width:
- cut-out 380 mm || external 427 mm
- Services:
- configuration of enclosure pre-drilled back || factory installation drive flush mounting kit
- Accessory / Separate Part Category:
- mounting and fixing accessory
- Depth:
- wall-enclosure separation 205.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- external 975 mm || cut-out 920 mm
- Nema Size:
- 5
- Permanent Permissible Load:
- 58.5 kg
- Circularity Profile:
- N/A
- Motor Power Kw:
- 30 kW 220/240 V || 37 kW 220/240 V || 45 kW 220/240 V || 55 kW 380/480 V || 75 kW 380/480 V || 90 kW 380/480 V
- Mounting Location:
- 1 back of enclosure mounting plate || 2 inside enclosure
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Altivar variable speed drive ATV630 || Altivar variable speed drive ATV930 || Spacial SF and SM enclosures || Altivar variable speed drive ATV340
- Product Or Component Type:
- drive flush mounting kit
- Color:
- Gray RAL 7035)
- Product Specific Application:
- process and utilities
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP55 conforming to IEC 60529
- Net Weight:
- 11.086 kg
- Sustainable Offer Status:
- Green Premium product
