Schneider Electric

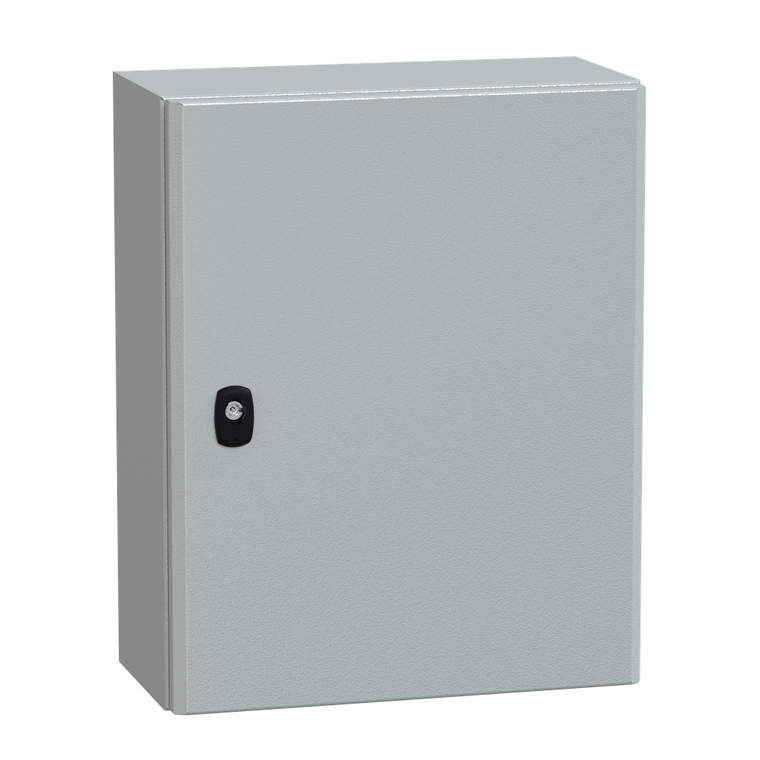

Schneider Electric NSYS3D5420 S3D H500Xw400Xd200 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYS3D5420 S3D H500Xw400Xd200 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D5420

UPC:

3.60648E+12

MPN:

Condition:

New

Enclosure Nominal Width:

400 mm

Color:

Gray RAL 7035)

Lock Type:

3 mm double-bar lock

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

200 mm

Number Of Doors:

front face 1

Product Name:

Spacial S3D

Installation Accessory Type:

wall-mounting

Removable Parts:

door by hinges || cable gland plate by screws

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Door Type:

Solid

Standards:

IEC 62208

Circularity Profile:

N/A

Surface Finish:

epoxy-polyester powder

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Height:

500 mm

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

compact enclosure

Material:

steel

Door Opening Side:

reversible 120 °)

Mounting Plate Description:

without mounting plate

Range:

Spacial

Net Weight:

9.3 kg

Ik Degree Of Protection:

IK10 IEC 62262

Product Certifications:

UL || cUL || LR || BV || GL || DNV

Accessibility For Operation:

front

Device Application:

multi-purpose

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Ip Degree Of Protection:

IP66 IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Gland Plate:

standard

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Nema Degree Of Protection:

NEMA 4X/13

Environmental Disclosure:

ENVPEP100104EN

Brochure:

View

Catalog:

View

Datasheet:

View
