Schneider Electric NSYS3D5525 S3D H500Xw500Xd250 One Plain Door
Schneider Electric
$134.65
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYS3D5525 S3D H500Xw500Xd250 One Plain Door

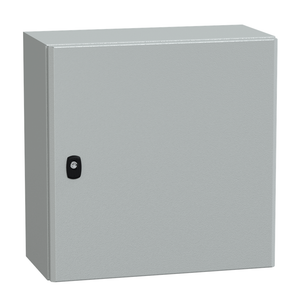

Spacial S3D wall mounted steel enclosure with plain door. 500 x 500 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
- Mercury Free:
- Yes
- Removable Parts:
- door by hinges || cable gland plate by screws
- Sustainable Offer Status:
- Green Premium product
- Color:
- Gray RAL 7035)
- Ik Degree Of Protection:
- IK10 IEC 62262
- Nema Degree Of Protection:
- NEMA 4X/13
- Mounting Plate Description:
- without mounting plate
- Product Or Component Type:
- compact enclosure
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range:
- Spacial
- Enclosure Nominal Width:
- 500 mm
- Lock Type:
- 3 mm double-bar lock
- Standards:
- IEC 62208
- Rohs Exemption Information:
- Yes
- Type Of Gland Plate:
- standard
- Product Name:
- Spacial S3D
- Door Type:
- Solid
- Device Application:
- multi-purpose
- Surface Finish:
- epoxy-polyester powder
- Product Certifications:
- UL || cUL || DNV || GL || BV || LR
- Ip Degree Of Protection:
- IP66 IEC 60529
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Opening Side:
- reversible 120 °)
- Number Of Doors:
- front face 1
- Enclosure Nominal Depth:
- 250 mm
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP100104EN
- Installation Accessory Type:
- wall-mounting
- Net Weight:
- 10.27 kg
- Enclosure Nominal Height:
- 500 mm
- Material:
- steel
- Device Composition:
- 1 body || 1 door || 1 lock || 1 cable gland plate
- Variant Particularity:
- single piece body || gutter-shaped front rail double sheet thickness
- Accessibility For Operation:
- front
