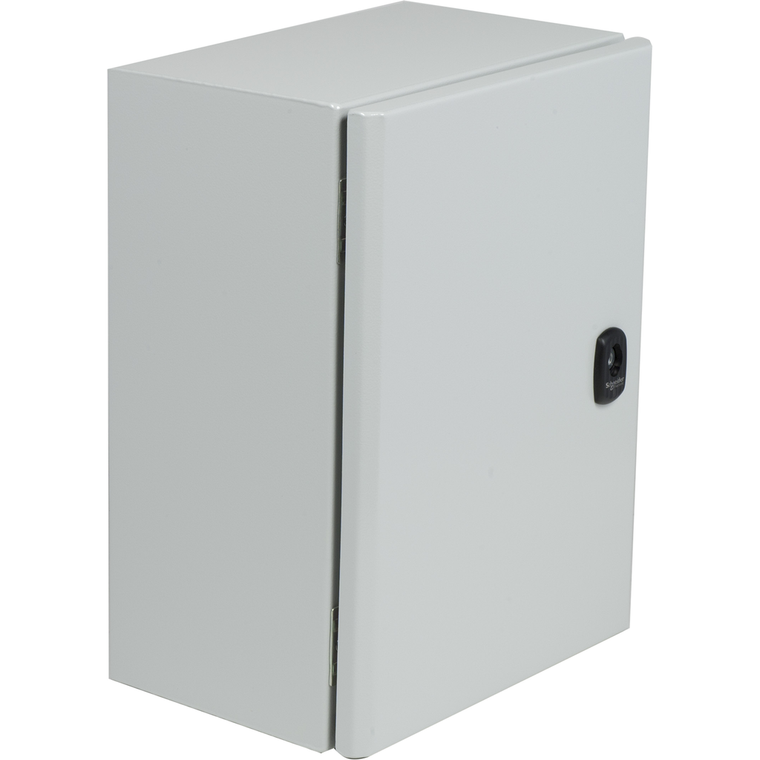

Schneider Electric NSYS3DC5520 S3Dc H500Xl500Xp200 Plain Door

SKU:

NSYS3DC5520

UPC:

3606480314056

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

IEC 62208

Surface Finish:

epoxy-polyester powder

Product Certifications:

UL

Warranty:

18 months

Material:

steel

Ip Degree Of Protection:

IP66 IEC 60529

Installation Accessory Type:

wall-mounting

Enclosure Nominal Depth:

200 mm

Product Name:

Spacial S3DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Net Weight:

10.4 kg

Environmental Disclosure:

ENVPEP100104EN

Type Of Gland Plate:

without gland plate

Product Or Component Type:

compact enclosure

Lock Type:

screw driver insert lock

Number Of Doors:

front face 1

Circularity Profile:

N/A

Door Type:

Solid

Mounting Plate Description:

without mounting plate

Ik Degree Of Protection:

IK10 IEC 62262

Accessibility For Operation:

front

Device Application:

multi-purpose

Enclosure Nominal Height:

500 mm

Rohs Exemption Information:

Yes

Color:

Gray RAL 7035)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Variant Particularity:

single piece body || gutter-shaped front profile double sheet thickness

Door Opening Side:

reversible 120 °)

Removable Parts:

door by hinges

Enclosure Nominal Width:

500 mm

Range:

Spacial

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 4X/13

Device Composition:

1 body || 1 door || 1 lock

Brochure:

View

Catalog:

View

Datasheet:

View
