Schneider Electric NSYS3DM5415T S3Dm Modul H500Xw400Xd150 Gl Door

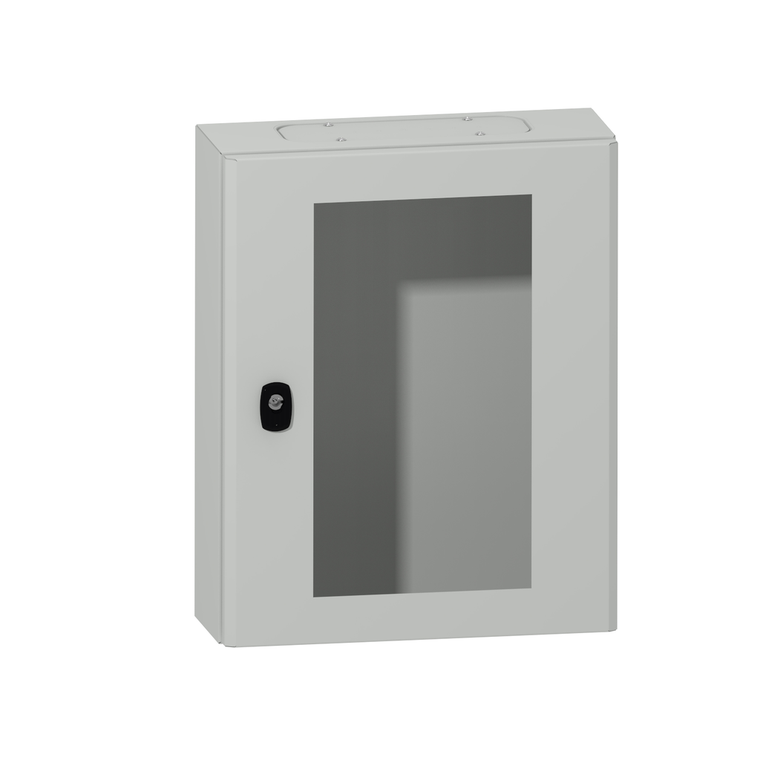

The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
- Lock Type:
- 3 mm double-bar lock
- Type Of Gland Plate:
- standard
- Accessibility For Operation:
- front
- Installation Accessory Type:
- wall-mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Color:
- Gray RAL 7035)
- Circularity Profile:
- N/A
- Range:
- Spacial
- Enclosure Nominal Height:
- 500 mm
- Environmental Disclosure:
- ENVPEP100104EN
- Material:
- body steel || door steel and security glass
- Warranty:
- 18 months
- Ik Degree Of Protection:
- IK08 IEC 62262
- Enclosure Nominal Depth:
- 150 mm
- Device Application:
- modular distribution application
- Enclosure Nominal Width:
- 400 mm
- Door Type:
- Glass
- Surface Finish:
- epoxy-polyester powder
- Door Opening Side:
- reversible 120 °)
- Product Or Component Type:
- compact enclosure
- Removable Parts:
- door by hinges || cable gland plate by screws
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mounting Plate Description:
- without mounting plate
- Standards:
- IEC 62208
- Sustainable Offer Status:
- Green Premium product
- Variant Particularity:
- single piece body || gutter-shaped front rail double sheet thickness
- Product Destination:
- for installation of modular chassis DLM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Number Of Doors:
- front face 1
- Product Name:
- Spacial S3DM
- Rohs Exemption Information:
- Yes
- Product Certifications:
- cUL || LR || GL || UL || BV || DNV
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Composition:
- 2 cable gland plate top and bottom || 1 body || 1 door || 1 lock
