Schneider Electric NSYS3DM7515T S3Dm Modul H700Xw500Xd150 Gl Door

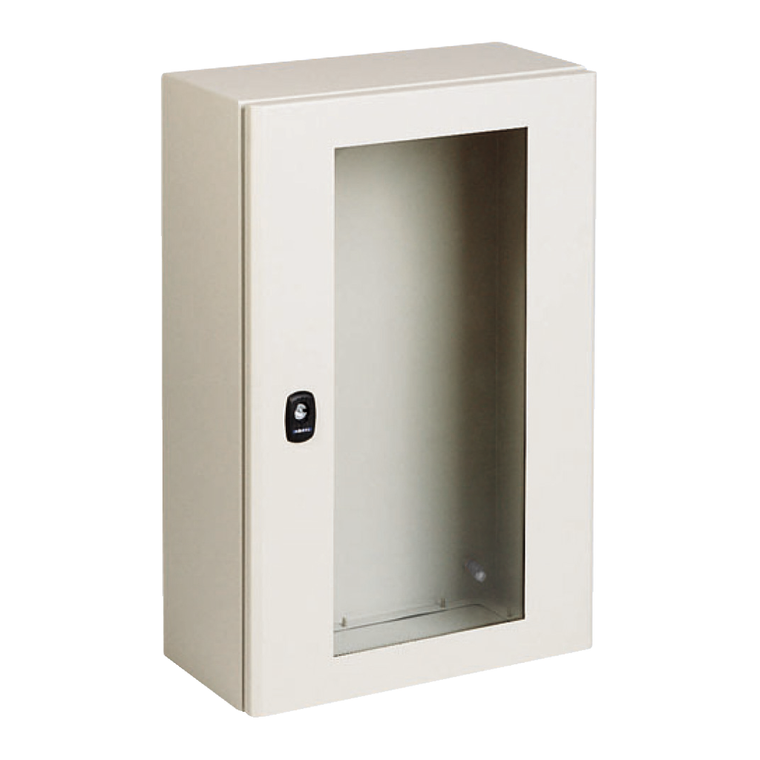

The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 700 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 points lock, 3 mm double-bar lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Device Composition:
- 2 cable gland plate top and bottom || 1 body || 1 door || 1 lock
- Warranty:
- 18 months
- Mounting Plate Description:
- without mounting plate
- Enclosure Nominal Height:
- 700 mm
- Door Type:
- Glass
- Surface Finish:
- epoxy-polyester powder
- Variant Particularity:
- gutter-shaped front rail double sheet thickness || single piece body
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Removable Parts:
- door by hinges || cable gland plate by screws
- Number Of Doors:
- front face 1
- Environmental Disclosure:
- ENVPEP100104EN
- Range:
- Spacial
- Product Destination:
- for installation of modular chassis DLM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- IEC 62208
- Mercury Free:
- Yes
- Door Opening Side:
- reversible 120 °)
- Accessibility For Operation:
- front
- Ip Degree Of Protection:
- IP66 IEC 60529
- Color:
- Gray RAL 7035)
- Material:
- body steel || door steel and security glass
- Sustainable Offer Status:
- Green Premium product
- Enclosure Nominal Depth:
- 150 mm
- Rohs Exemption Information:
- Yes
- Product Name:
- Spacial S3DM
- Installation Accessory Type:
- wall-mounting
- Enclosure Nominal Width:
- 500 mm
- Device Application:
- modular distribution application
- Product Certifications:
- LR || UL || DNV || cUL || GL || BV
- Product Or Component Type:
- compact enclosure
- Ik Degree Of Protection:
- IK08 IEC 62262
- Lock Type:
- 3 points lock, 3 mm double-bar
- Type Of Gland Plate:
- standard
