Schneider Electric NSYS3DM8615T S3Dm Modul H800Xw600Xd150 Gl Door
Schneider Electric
$277.99
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYS3DM8615T S3Dm Modul H800Xw600Xd150 Gl Door

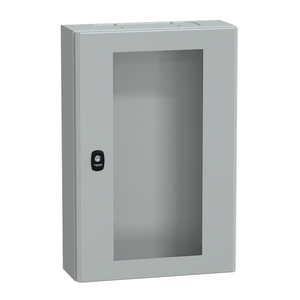

The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 800 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 points lock, 3 mm double-bar lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
- Product Name:
- Spacial S3DM
- Mercury Free:
- Yes
- Door Type:
- Glass
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Enclosure Nominal Width:
- 600 mm
- Lock Type:
- 3 points lock, 3 mm double-bar
- Variant Particularity:
- single piece body || gutter-shaped front rail double sheet thickness
- Sustainable Offer Status:
- Green Premium product
- Ik Degree Of Protection:
- IK08 IEC 62262
- Device Composition:
- 2 cable gland plate top and bottom || 1 body || 1 door || 1 lock
- Device Application:
- modular distribution application
- Color:
- Gray RAL 7035)
- Door Opening Side:
- reversible 120 °)
- Product Certifications:
- LR || GL || BV || UL || cUL || DNV
- Installation Accessory Type:
- wall-mounting
- Enclosure Nominal Height:
- 800 mm
- Removable Parts:
- door by hinges || cable gland plate by screws
- Ip Degree Of Protection:
- IP66 IEC 60529
- Enclosure Nominal Depth:
- 150 mm
- Material:
- body steel || door steel and security glass
- Accessibility For Operation:
- front
- Type Of Gland Plate:
- standard
- Environmental Disclosure:
- ENVPEP100104EN
- Mounting Plate Description:
- without mounting plate
- Circularity Profile:
- N/A
- Standards:
- IEC 62208
- Product Or Component Type:
- compact enclosure
- Surface Finish:
- epoxy-polyester powder
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Range:
- Spacial
- Number Of Doors:
- front face 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Destination:
- for installation of modular chassis DLM
- Datasheet:
- View
