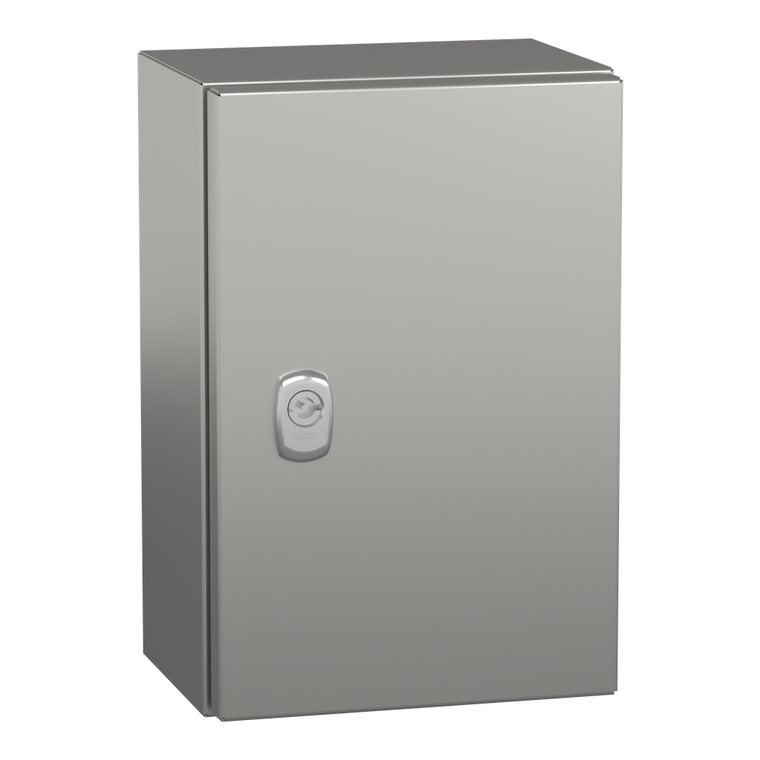

Schneider Electric NSYS3X3215H S3X 316L 300X200X150

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X3215H S3X 316L 300X200X150

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X3215H

UPC:

3.60648E+12

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Installation Accessory Type:

wall-mounting

Enclosure Nominal Width:

200 mm

Ik Degree Of Protection:

IK10 IEC 62262

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP2109018EN

Accessibility For Operation:

front

Mercury Free:

Yes

Door Opening Side:

reversible 120 °)

Product Certifications:

UL 508 type A || CAN/CSA 22

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Product Or Component Type:

compact enclosure

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 body || 1 lock door || 1 door

Circularity Profile:

N/A

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Type Of Gland Plate:

without gland plate

Range:

Spacial

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Height:

300 mm

Ip Degree Of Protection:

IP66 IEC 60529

Standards:

IEC 62208

Environmental Characteristic:

corrosive || specific hygiene

Material:

lock zamak || hinge stainless steel || body and door stainless steel 316L

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Door Type:

Solid

Lock Type:

3 mm double-bar lock

Enclosure Nominal Depth:

150 mm

Number Of Doors:

front face 1

Mounting Plate Description:

without mounting plate

Net Weight:

3.12 kg

Product Name:

Spacial S3X

Removable Parts:

door by hinges

Catalog:

View

Datasheet:

View
