Schneider Electric NSYS3X4320 S3X 304L 400X300X200
Schneider Electric
$376.48
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

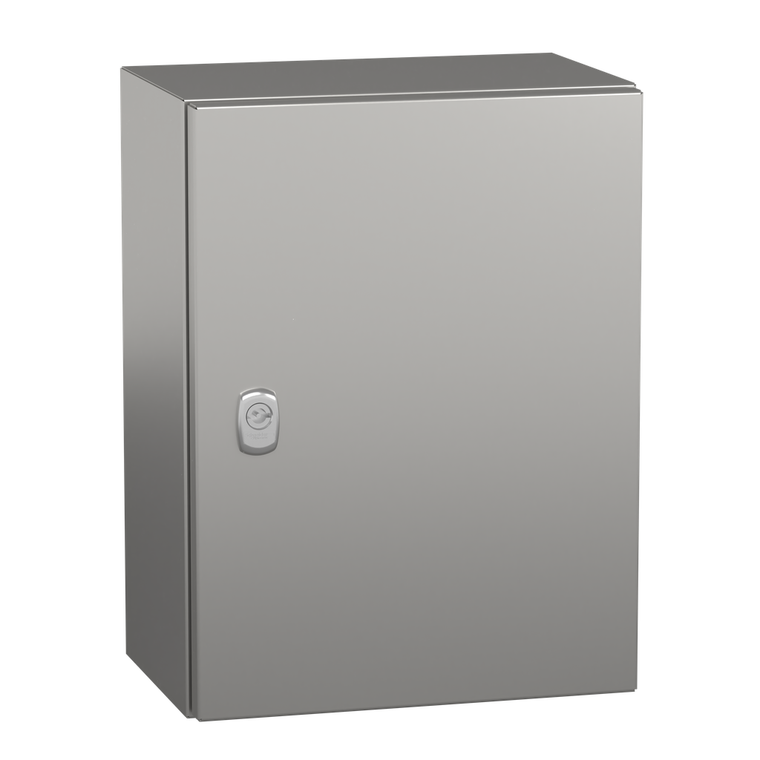

Schneider Electric NSYS3X4320 S3X 304L 400X300X200
Spacial S3X compact steel enclosure with plain front door. 400 x 300 x 200 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
- Enclosure Nominal Width:
- 300 mm
- Body Type:
- single piece body, cross-shaped structure || gutter shaped front rail
- Product Name:
- Spacial S3X
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Enclosure Nominal Height:
- 400 mm
- Surface Finish:
- body and door Scotch-Brite® brushed || lock chromium plated
- Enclosure Nominal Depth:
- 200 mm
- Warranty:
- 18 months
- Product Or Component Type:
- compact enclosure
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Accessibility For Operation:
- front
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK10 IEC 62262
- Range:
- Spacial
- Number Of Doors:
- front face 1
- Ip Degree Of Protection:
- IP66 IEC 60529
- Material:
- body and door stainless steel 304L || lock zamak || hinge stainless steel
- Installation Accessory Type:
- wall-mounting
- Environmental Disclosure:
- ENVPEP2109018EN
- Door Opening Side:
- reversible 120 °)
- Circularity Profile:
- N/A
- Device Composition:
- 1 body || 1 lock door || 1 door
- Environmental Characteristic:
- corrosive || specific hygiene
- Net Weight:
- 5.468 kg
- Device Application:
- multi-purpose
- Standards:
- IEC 62208
- Product Certifications:
- UL 508 type A || CAN/CSA 22
- Lock Type:
- 3 mm double-bar lock
- Type Of Gland Plate:
- without gland plate
- Mercury Free:
- Yes
- Mounting Plate Description:
- without mounting plate
- Door Type:
- Solid
- Rohs Exemption Information:
- Yes
- Removable Parts:
- door by hinges
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
