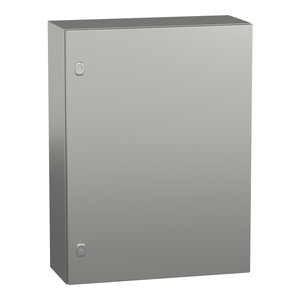

Schneider Electric NSYS3X4420H S3X 316L 400X400X200

SKU:

NSYS3X4420H

UPC:

3.60648E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Spacial S3X

Door Opening Side:

reversible 120 °)

Range:

Spacial

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Ik Degree Of Protection:

IK10 IEC 62262

Mercury Free:

Yes

Enclosure Nominal Depth:

200 mm

Warranty:

18 months

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Nominal Width:

400 mm

Material:

lock zamak || hinge stainless steel || body and door stainless steel 316L

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Accessibility For Operation:

front

Net Weight:

6.766 kg

Lock Type:

3 mm double-bar lock

Circularity Profile:

N/A

Device Composition:

1 body || 1 lock door || 1 door

Rohs Exemption Information:

Yes

Enclosure Nominal Height:

400 mm

Standards:

IEC 62208

Environmental Disclosure:

ENVPEP2109018EN

Product Certifications:

UL 508 type A || CAN/CSA 22

Mounting Plate Description:

without mounting plate

Door Type:

Solid

Installation Accessory Type:

wall-mounting

Device Application:

multi-purpose

Type Of Gland Plate:

without gland plate

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Doors:

front face 1

Product Or Component Type:

compact enclosure

Environmental Characteristic:

corrosive || specific hygiene

Removable Parts:

door by hinges

Catalog:

View

Datasheet:

View
