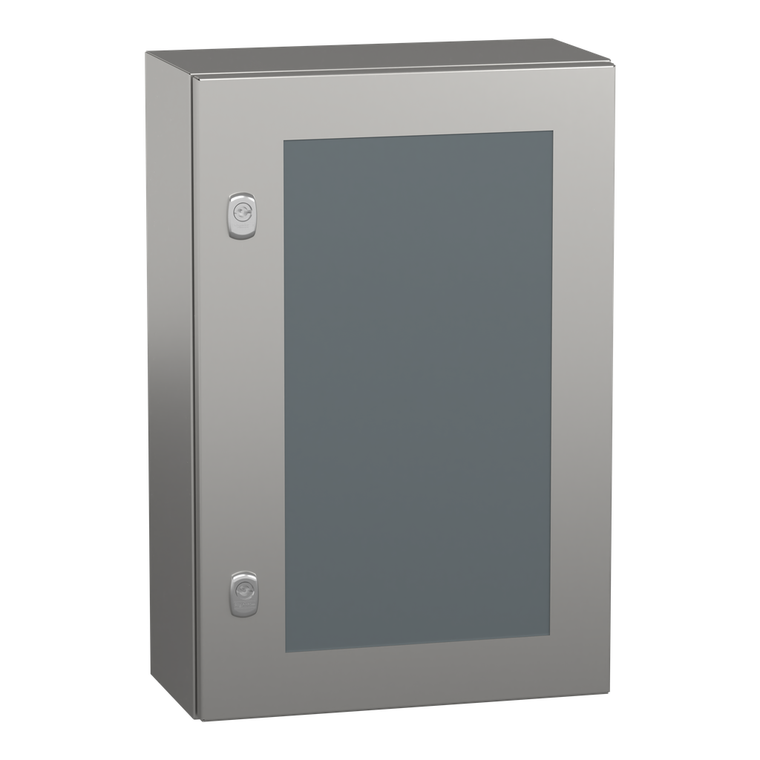

Schneider Electric NSYS3X6420T S3X 304L Glazed.D 600X400X200

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X6420T S3X 304L Glazed.D 600X400X200

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X6420T

UPC:

3.60648E+12

MPN:

Condition:

New

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Accessibility For Operation:

front

Ik Degree Of Protection:

IK08 IEC 62262

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Rohs Exemption Information:

Yes

Warranty:

18 months

Door Opening Side:

reversible 120 °)

Enclosure Nominal Depth:

200 mm

Product Certifications:

CAN/CSA 22 || UL 508 type A

Lock Type:

2 points lock, 3 mm double-bar

Device Composition:

1 body || 1 lock door || 1 door

Enclosure Nominal Width:

400 mm

Device Application:

multi-purpose

Installation Accessory Type:

wall-mounting

Product Name:

Spacial S3X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Door Type:

Glass

Sustainable Offer Status:

Green Premium product

Type Of Gland Plate:

without gland plate

Removable Parts:

door by hinges

Standards:

IEC 62208

Number Of Doors:

front face 1

Circularity Profile:

N/A

Material:

body and door stainless steel 304L || lock zamak || hinge stainless steel || door Securit glass

Enclosure Nominal Height:

600 mm

Range:

Spacial

Product Or Component Type:

compact enclosure

Net Weight:

9.58 kg

Ip Degree Of Protection:

IP66 IEC 60529

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Plate Description:

without mounting plate

Environmental Disclosure:

ENVPEP2109018EN

Environmental Characteristic:

specific hygiene || corrosive

Catalog:

View

Datasheet:

View
