Schneider Electric NSYS3X6625 S3X 304L 600X600X250
Schneider Electric
$757.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYS3X6625 S3X 304L 600X600X250
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

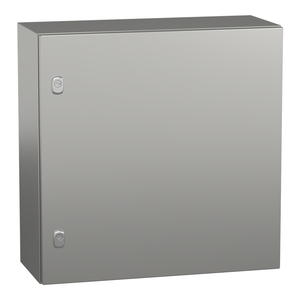

Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x600x250mm, IP66
- Circularity Profile:
- N/A
- Standards:
- IEC 62208
- Type Of Gland Plate:
- without gland plate
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Application:
- multi-purpose
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Number Of Doors:
- front face 1
- Enclosure Nominal Width:
- 600 mm
- Enclosure Nominal Depth:
- 250 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2109018EN
- Device Composition:
- 1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door
- Warranty:
- 18 months
- Environmental Characteristic:
- corrosive || specific hygiene
- Removable Parts:
- door by hinges
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Door Opening Side:
- reversible 120 °)
- Product Name:
- Spacial S3X
- Mercury Free:
- Yes
- Surface Finish:
- body and door Scotch-Brite® brushed || lock chromium plated
- Door Type:
- Solid
- Product Or Component Type:
- compact enclosure
- Accessibility For Operation:
- front
- Ik Degree Of Protection:
- IK10 IEC 62262
- Net Weight:
- 13.902 kg
- Product Certifications:
- UL 508 type A || CAN/CSA 22
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Body Type:
- single piece body, cross-shaped structure || gutter shaped front rail
- Lock Type:
- 2 points lock, 3 mm double-bar
- Mounting Plate Description:
- without mounting plate
- Installation Accessory Type:
- wall-mounting
- Enclosure Nominal Height:
- 600 mm
- Material:
- body and door stainless steel 304L || lock zamak || hinge stainless steel
- Range:
- Spacial
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
